DADM224 – Diversity Antenna Distribution Module

Product

The DADM224 DADM224 Diversity Antenna Distribution Module is a custom design which offers the solution to antenna and power distribution requirements for portable sound bags.

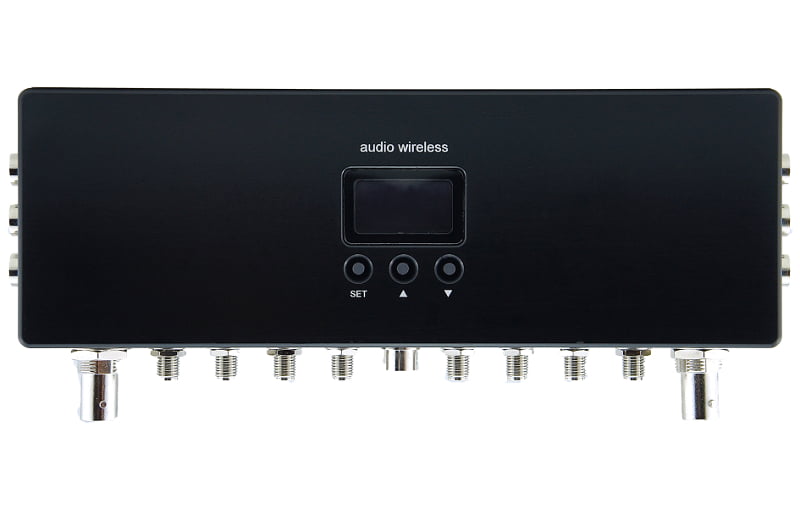

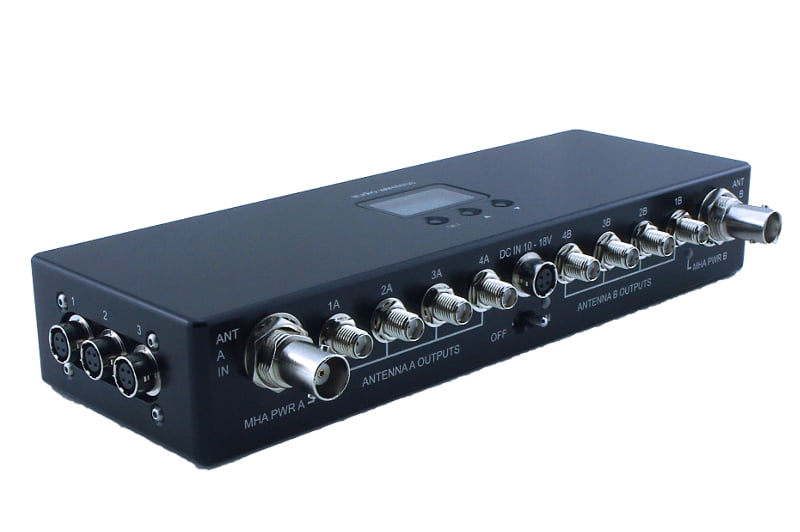

A unique custom design, Antenna and Power Distribution system offers excellent rejection for interference free operation feeding up to four Diversity Receivers. User adjustable settings can be controlled via the intuitive OLED display menu to power remote antenna amplifiers, to turn each receiver ON/OFF and to turn Hirose dc output volts within the frequency range from 470 – 715MHz the DADM224 is fitted with 2 x BNC as Antenna inputs and 2 x 4 SMA Antenna output connectors with switchable Remote Antenna Powering. The six switchable DC Hirose power sockets supply dc power to sound bag or sound cart equipment.

The DADM224 DADM224 Diversity Antenna Distribution Module is a CNC machined aluminum box to withstand daily location work, finished in black anodizing with clearly laser marked legends for long term readability.

Tuote on tarkoitettu vain ammattikäyttöön. Ei takuuta.

Specs

• Frequency Range: 470 to 630MHz
• Input Impedance: 50 Ω
• Output Impedance: 50 Ω
• Gain (each output): +6 dB to -10dB, user adjustable
• Current Consumption: 185mA
• OIP3: > +41dBm
• Port to port isolation: > 20dB (min.)
• Noise figure: < 3 dB
• RF Inputs: 2 x 50 Ω Standard BNC Sockets
• RF/DC outputs to receivers: 2 x 4 x 50 Ω mini UHF SMA sockets

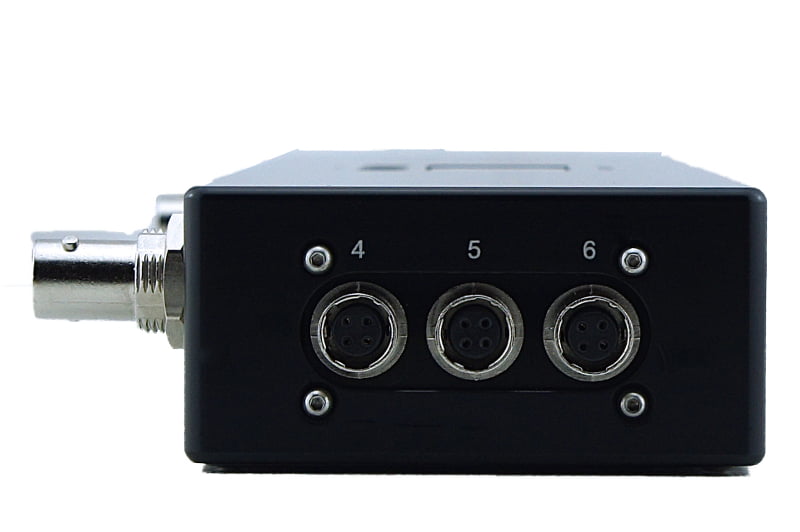

• DC Power OUT: 6 x 4-pin Hirose sockets individually fused and protected against reverse polarity, standard pin-outs, Pin1(-ve) and Pin4(+ve)
