MASTER 40 – Dove tail Pla
Product

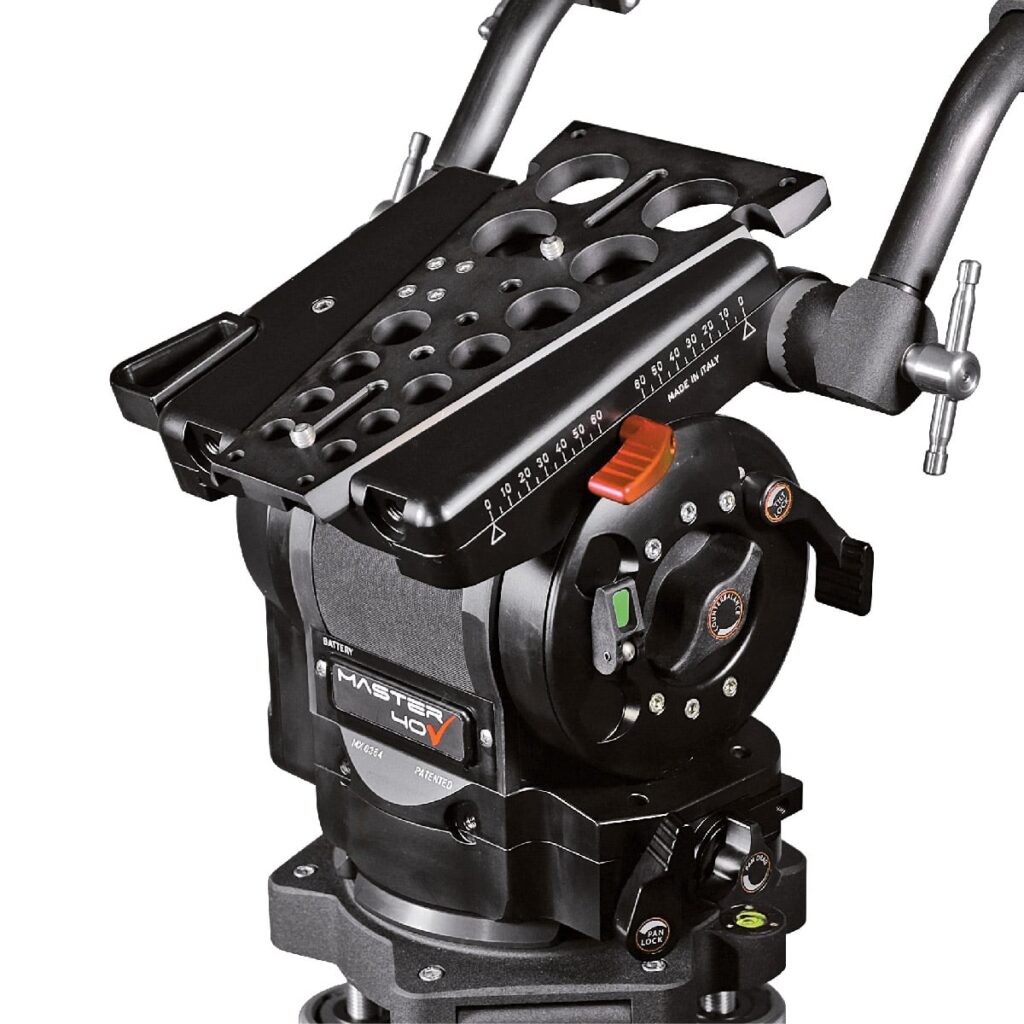

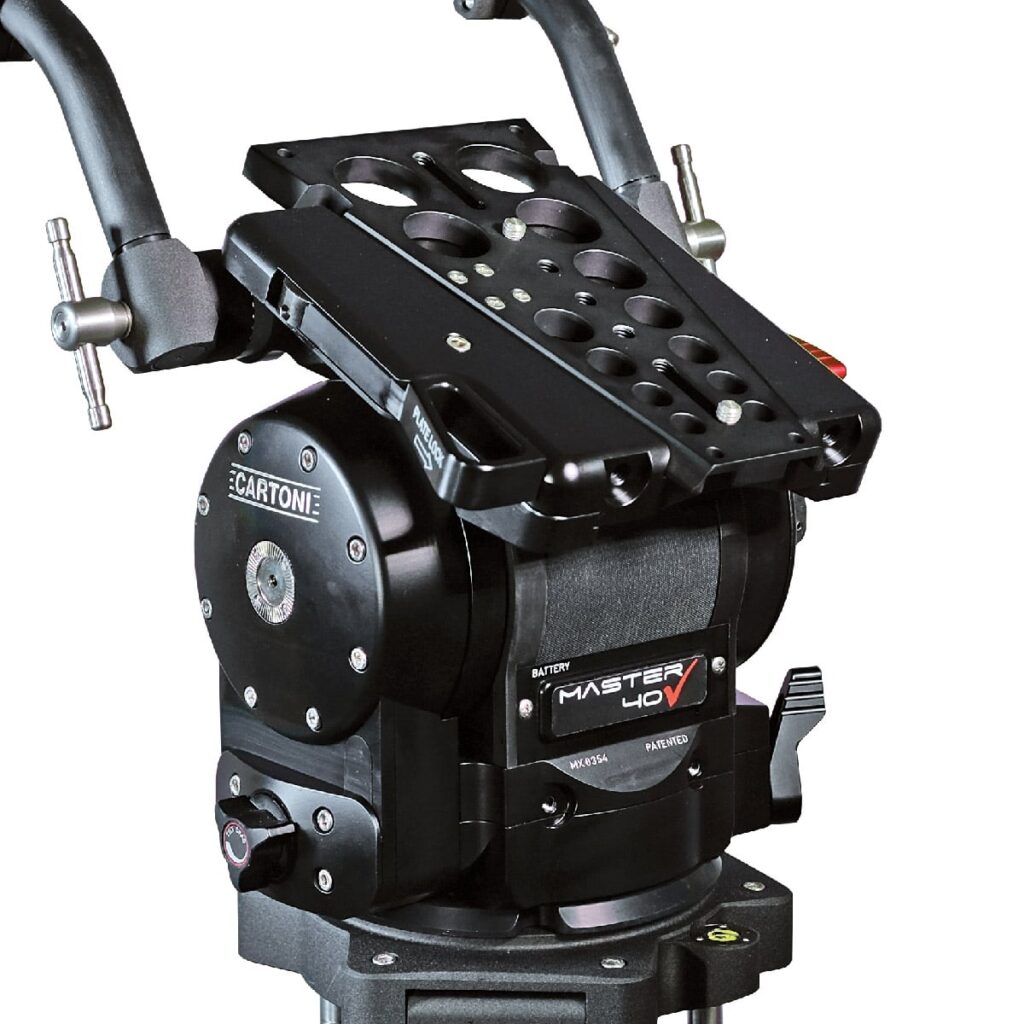

The Master 40 fluid head is the ideal support for heavy duty broadcast camera packages, fully decked with boxed lenses and viewfinder, with a capacity up to 52 kg (115 lbs)
The camera counterbalance system is the patented steel cable technology and ensures a perfect balance at any angle of a unique +/- 90 degrees tilt range.
Fluid drag control features Cartoni’s patented “planetary” fluid system, performing from freewheeling to consistent maximum drag, in both pan and tilt movements.
Features
- +/- 90° tilt range
- Flat Mitchell base
- Continuous fluid drag and continuous counterbalance
- Perfect balance at any tilt angle
- Ergonomic brake levers and operating knobs
- Horizontal lock
- Large sliding camera platform with quick release

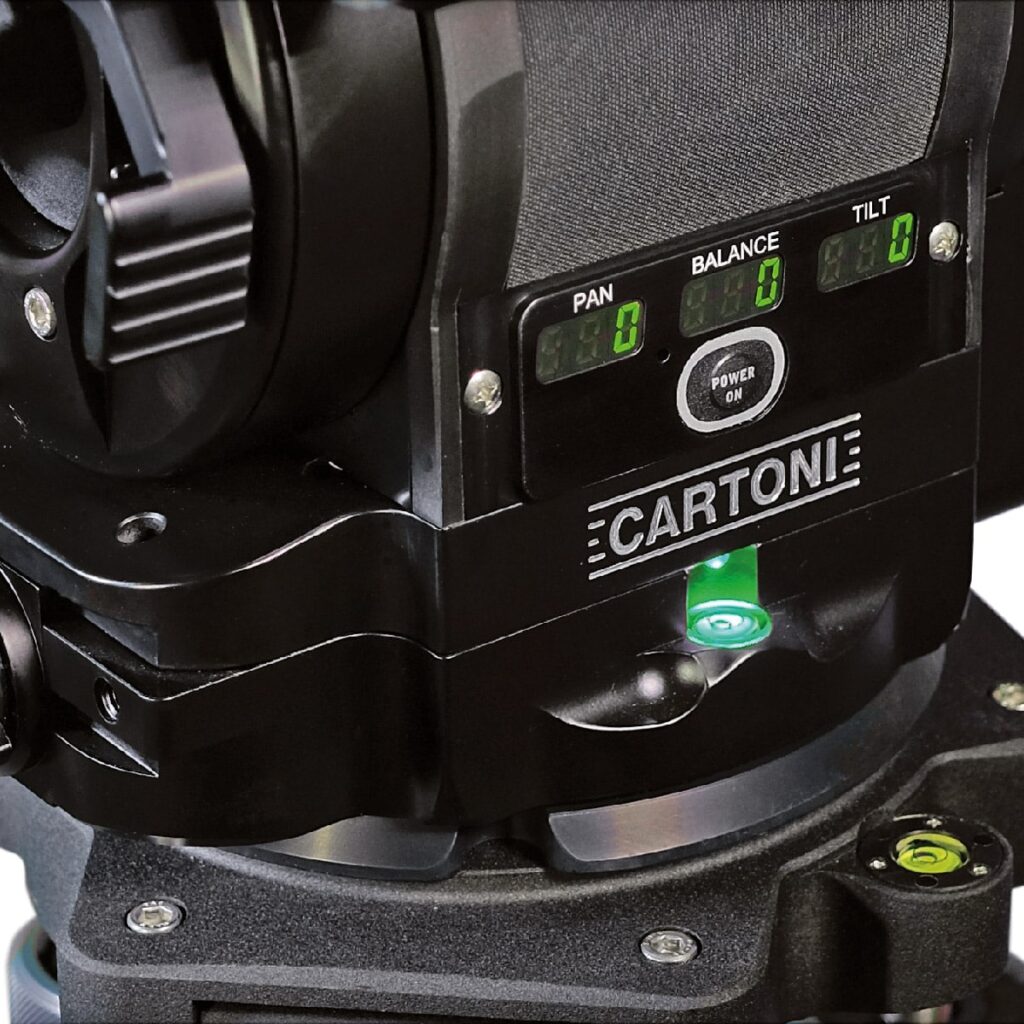

- Digital readouts and illuminated spirit level
- Telescopic pan bar (second pan bar ordered separately)
Specs
- Weight 15 kg
- Minimum Payload Capacity 5 kg

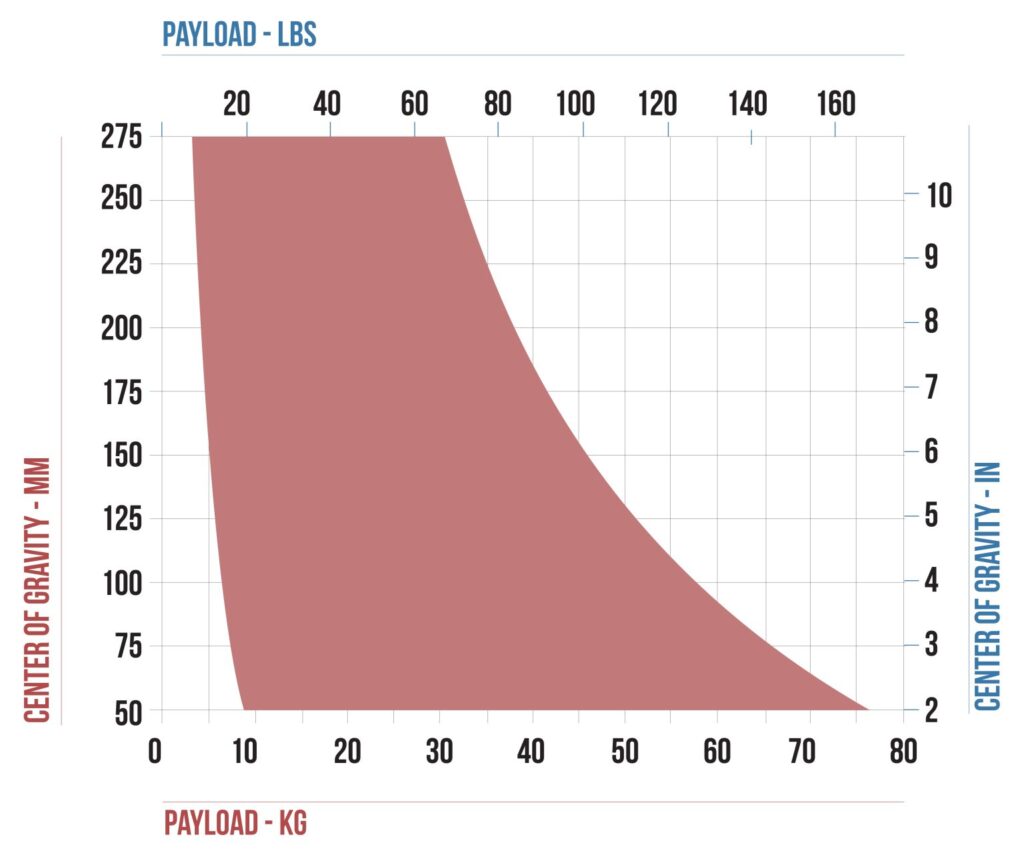

- Maximum Payload Capacity 52 kg
- Bowl Diameter Flat
- Fluid Drag Continuous
- Counterbalance Continuous
- Tilt Range +/-90°
- Operational temperature -40°/+60° Celsius
Included
- Master 40
- Telescopic Pan bar Master 40 – Master 65 – Magnum
- Tie down knob Master – Maxima series
Register your product within 30 days from date of purchase/invoice to receive further two (2) year warranty for the unprecedented free five (5) year warranty.
