URSA Cine 12K LF Body

Name: URSA Cine 12K LF Body
SKU: CINEURSAAA12KLFABDY
Availability: BackOrder

Product code: CINEURSAAA12KLFABDY

6423€

(VAT 0%)

8061€

(VAT 25.5%)

Availability

Not in stock

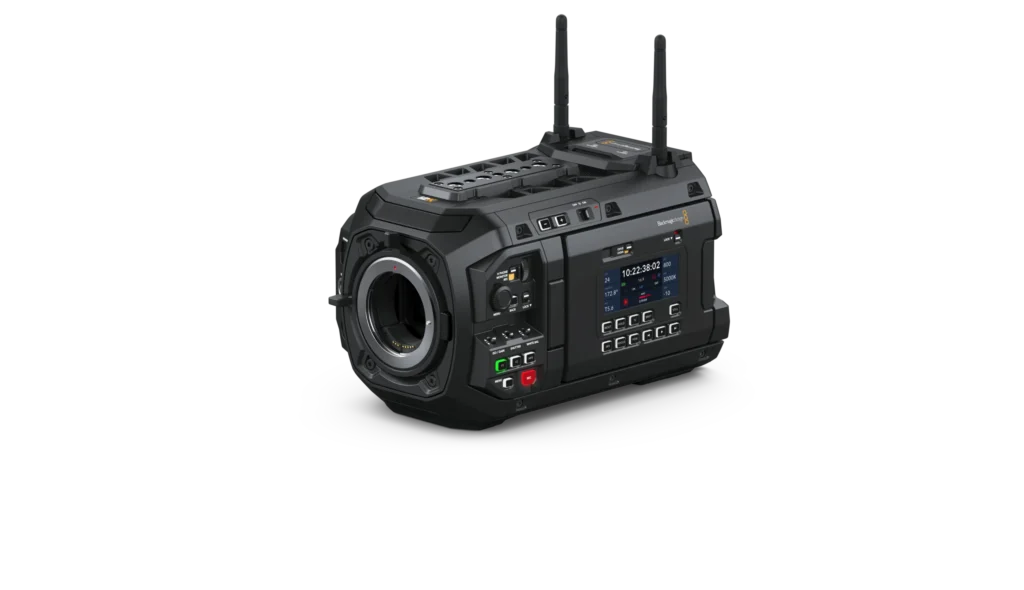

URSA Cine 12K LF Body

Blackmagic URSA Cine 12K LF is a revolution in digital film with a new large format RGBW 36 x 24mm sensor with larger photo-sites for 16 stops of dynamic range. The URSA Cine 12K LF Body model is ideal when you have existing cinema accessories that you want to use to create your own camera rig. It excludes top handle, baseplate, power supply, battery plate and PL lens mount. It does come with an interchangeable EF lens mount, a dedicated assist station with a second 5″ HDR LCD touchscreen, built in ND filters and industry standard Lemo and Fischer connections. Blackmagic URSA Cine 12K LF Body also includes a CFexpress media module, high speed 10G Ethernet and WiFi for fast media upload and syncing to Blackmagic Cloud.

Ominaisuudet

Effective Sensor Size: 35.64mm x 23.32mm (Large Format)
Pixel Pitch: 2.9 microns
Lens Mount: URSA Cine lockable EF mount. Interchangeable with optional URSA Cine PL mount.
Lens Control: Lens control of compatible EF lenses. Lens data from compatible PL lenses and control of some PL lenses.
Dynamic Range: 16 Stops
Shooting Formats:
- 12,288 x 8040 (12K 3:2 open gate)
- 12,288 x 6912 (12K 16:9),
- 12,288 x 6480 (12K 17:9)
- 12,288 x 5112 (12K 2.4:1),
- 9648 x 8040 (12K 6:5)
- 9408 x 6264 (9K 3:2),
- 8688 x 4896 (9K 16:9)
- 9312 x 4896 (9K 17:9)
- 9312 x 3864 (9K 2.4:1)
- 7680 x 6408 (9K 6:5)
- 8192 x 5360 (8K 3:2 open gate)
- 8192 x 4608 (8K 16:9)
- 8192 x 4320 (8K 17:9)
- 8192 x 3408 (8K 2.4:1)
- 6432 x 5360 (8K 6:5)
- 4096 x 2680 (4K 3:2 open gate)
- 4096 x 2304 (4K 16:9)
- 4096 x 2160 (4K 17:9)
- 4096 x 1704 (4K 2.4:1)
- 3216 x 2680 (4K 6:5)
Frame Rates: Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
High Speed Frame Rates:
- 12K 3:2 open gate up to 80 fps
- 12K 17:9 up to 100 fps
- 12K 2.4:1 up to 120 fps
- 9K 3:2 Super 35 up to 100 fps
- 8K / 4K 3:2 open gate up to 144 fps
- 8K / 4K 2.4:1 up to 224 fps
Built in ND Filters: Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR ND filters.
Focus: Focus button turns on peaking, auto focus available using compatible lenses.
Iris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screens: 2 x Monitoring Screens, 1 x Camera Status Screen
Monitoring Screen Dimensions: 5 inch.
Monitoring Screen Resolution: 1920px x 1080px
Monitoring Screen Brightness: 1500 nits.
Monitoring Screen Type: LCD capacitive touchscreen
Metadata Support: Automatically populated lens data from compatible EF lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls: Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF.
Timecode Clock: Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
