CV368 Global Shutter & Genlock Compact Broadcast Camera

Product information

Marshallin CV368 Global Shutter & Genlock Compact Broadcast Camera on pienikokoinen ja tehokas kamera, joka on rakennettu Sonyn 1/1.8" global sensorin ympärille, jossa on 25% suuremmat pikselit sekä hyvinkin joustava CS linssi mountti. Tämän HD tasoisen POV kameran ulostuloina ovat 3G-SDI sekä HDMI output.

Ominaisuudet

• Large 1/1.8" Global Shutter Sensor
• 3.2 Megapixels with 25% larger pixel size

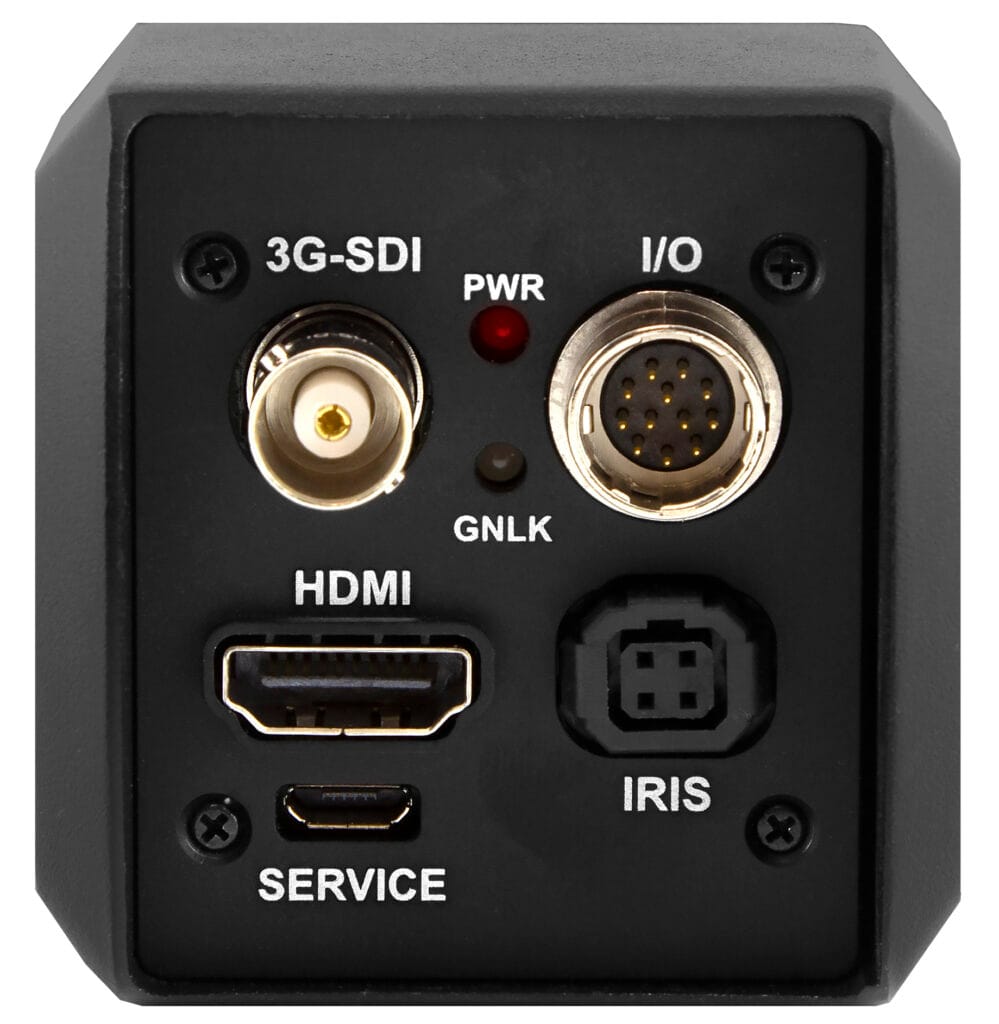

• Simultaneous 3GSDI & HDMI outputs
• Mic/Line Level (2.5V bias), AUDIO stereo embedding up to 48kHz

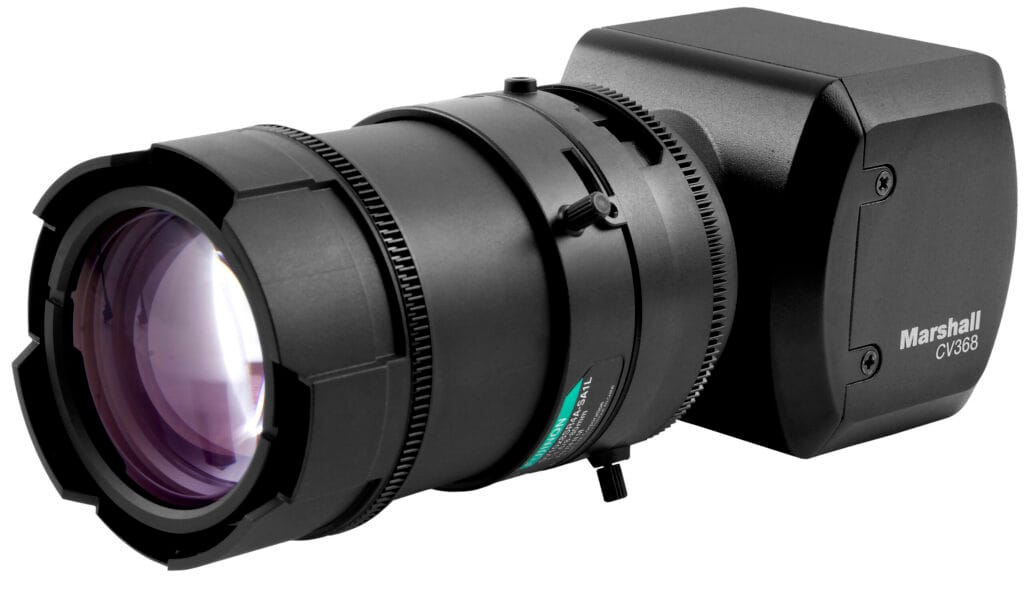

• Flexible CS/C Lens Mount (lens sold separately)
• Tri-Level Sync (Genlock) for faster, more accurate camera switching
• SMPTE 424M (2.97Gbps) - 3GSDI:
  • 1920x1080p @ 50, 59.94, 60fps
• SMPTE 292M (1.485Gbps) - HDSDI:
  • 1920x1080p @ 23.97, 24, 25, 29.97, 30fps
  • 1920x1080i @ 50, 59.94, 60fps
  • 1280x720p @ 50, 59.94, 60fps
• Image Mirror/Flip, Digital Zoom, Digital Image Stabilizer
• Microphone/Line Level input with 2.5V Mic bias
• Color Matrix feature: Style, Master Level, Master Phase, Color Level, Color Phase
• Environmental: -10°C ~ 50°C
• 12v power supply, can operate 12V+/-10% with a 6 watt draw
