NANO ONE – 14.8V / 50Wh V-Mount Battery

Product

NANO ONE - 14.8V / 50Wh V-Mount Battery with one D-Tap output and multiple USB outputs, you’ll never run out of possibilities to power your equipment.

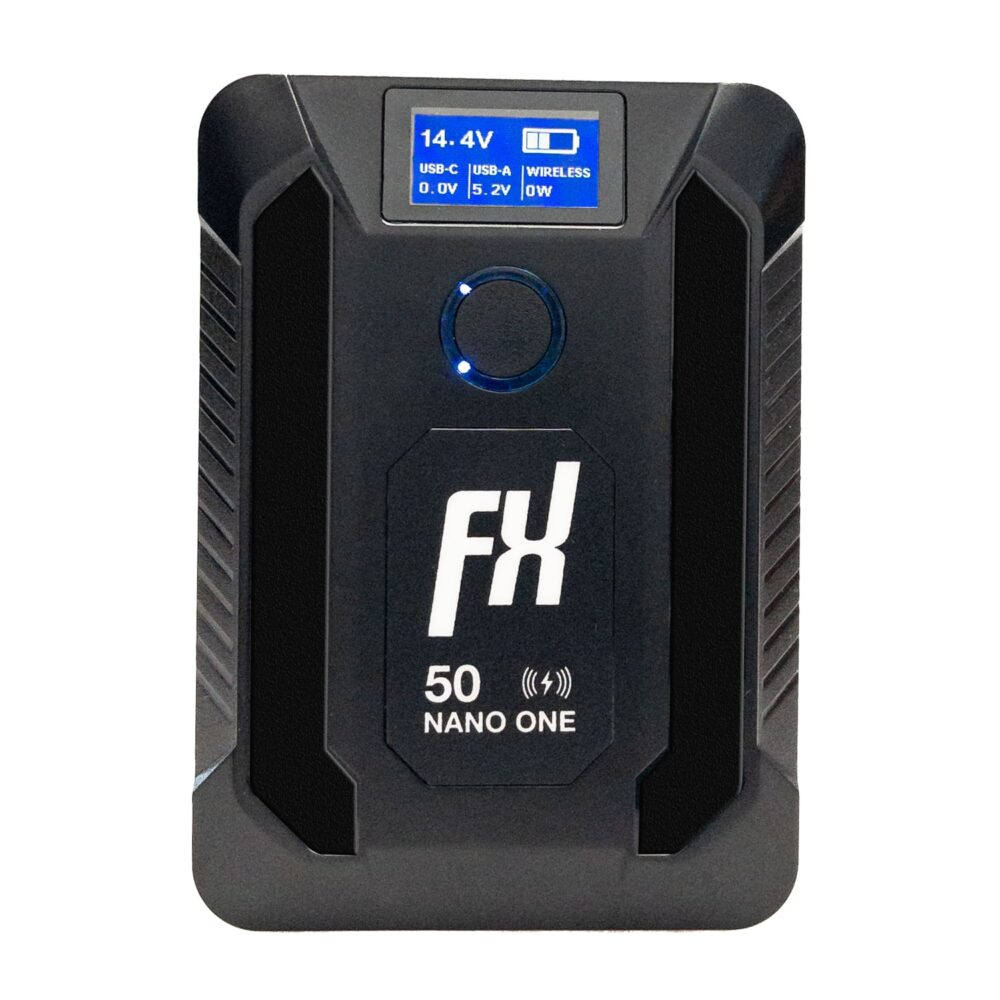

This 14.8V battery is suited for small equipment or as a power bank for your phone. Its small size is perfect for gimbal operated equipment or smaller camera rigs. The USB-C Output is strong enough to even charge your Apple MacBook or any other USB-C powered laptops/devices. A big feature is also, that you don’t need a dedicated D-Tap or V-Mount charger. You are able to charge these batteries over USB-C very quickly. The sockets are protected from dust with a rubber cap. LCD screen shows battery information and 4-levels LED indicators show battery’s power. With intelligent communication function, show battery cycles, inside temperature, charging/discharging time. The new design features a built-in wireless charger. So you can easily charge up your phone on the go. Wireless charging has a maximum output of 15W. All our batteries have a built-in protection circuit, that protects it from over-current, over-charge, over-discharge and over-heat. It can be used in a wide range of environmental temperatures from -20°C up to 55°C. For suitable equipment calculations visit our support webpage – you will find a comprehensive article about how to calculate the right capacity and how long this battery will last based on an example situation.

Features

• Voltage 14.4V
• Capacity 3.4Ah 50Wh
• Load 8A (max.)
• USB-A Output 5V/2.4A, 9V/2A, 12V/1.5A
• USB-C In- & Output 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A (60W max.)
• Micro USB Input 5V/3A, 9V/2A 12V/1.5A
• D-Tap In- & Output Yes (1x)
• Wireless Charging Output 15W max.
• Working Temperature -20°C to 55°C
• Dimensions 101(L)mm×72(W)mm×39(H)mm
• Weight 330g
