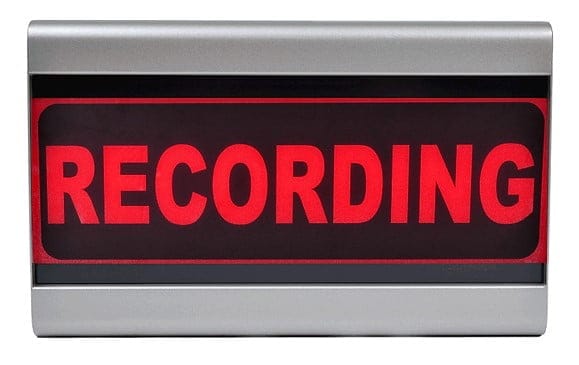

RECORDING Studio LED Warning Light

Product

A perfect matching ON-AIR light for all BROADCAST mixers.
You can of course use the unit too for other brands.
We call it ON-AIR Lamp but actually there is no lamp inside anymore, just everlasting high intensity
red leds.
The unit is powered by a 12 volt DC 1 Amp external power supply.
And what's more… no hassle with how do I connect this thing to my AIRMATE-USB/AIRENCEUSB/AIRLAB or AXUM.
No complicated high voltage AC switching with external relays etc. etc.
What you only need is one stereo cable (wired tip/ring) coming from the MIC-ON connector on the
back of the AIRMATE/AIRENCE/AIRLAB console that goes directly hardwired to a barrier strip inside
the ON-AIR LIGHT. How easy is this for a change.
The power adapter (included in the delivery) will also be directly wired to the barrier strip inside the
unit.

Features

Low current LED strip fed by external Power Adapter.
Directly controllable from any mixer without extra relays and mains power.

Specs

Pin-1= + 12 volt DC 200mA)
Pin-2= - 12 volt DC 200mA)
Pin-3= Control
Pin-4= Control
In case you want to connect 2x ON-AIR warning lights to
one reed relay in the mixer, simply connect the control wires going to the mixer in
series with each other, but in the right way!!
Note: Pin 4 of the control of ON-AIR-1 needs to be connected to Pin 3 of the
control of ON-AIR-2. Both LEDS will go on when control 3 of ON-AIR-1 and
Control-4 of ON-AIR-2 are shorted.
