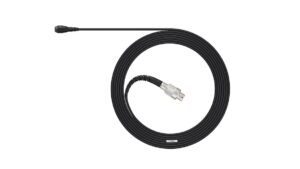

4060 CORE+ Omni Mic, Normal SPL, Black, MicroLock

Product

The 4060 Omni Mic is the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. This microphone handles sound pressure levels up to 134 dB before clipping occurs. This mic is well suited for applications where the sound source is more remote or damped and you need to have a good balance signal versus noise.

Now with CORE+ & MicroLock®.

CORE+ takes your miniature mic to the next level, neutralizing distortion across the entire dynamic range. MicroLock – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.

Features

• Exceptional audio quality
• Uniform, consistent sound between DPA mics
• Extremely rugged and reliable
• Diminutive size made for flexible and easy concealment
• Large selection of clips, windscreens, grids and other accessories
• Modular adapter system fits most professional wireless systems

Specs

• Directional patternOmnidirectional
• Principle of operationPressure
• Cartridge typePre-polarized condenser
• Frequency response20 Hz – 20 kHz
• Effective frequency range ±2 dBSoft boost grid: 20 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz. High boost grid: 20 Hz – 20 kHz, 10 dB boost at 12 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weightedTyp. 26 dB(A) re. 20 µPa (max. 28 dB(A))
• Equivalent noise level, ITU-R BS.468-4Typ. 38 dB (max. 40 dB)
• Distortion, THD < 0.5%133 dB SPL RMS, 136 dB SPL peak
• Distortion, THD < 1%136 dB SPL RMS, 139 dB SPL peak
• Dynamic rangeTyp. 111 dB
• Max. SPL, THD 10%144 dB SPL peak
• Rated output impedance30 – 40 Ω
• Cable drive capabilityUp to 300 m (984 ft) with DAD6001-BC XLR Adapter
• Power supply (for full performance)For wireless systems Min. 5 V – max. 10 V through DPA adapter
• With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
• Current consumptionTyp. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
• ConnectorMicroLock, MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
• Weight7.5 g (0.26 oz) incl. Cable and MicroLock connector
• Microphone diameter5.4 mm (0.21 in)
• Microphone length12.7 mm (0.5 in)
• Cable length1.8 m (5.9 ft)
• PolarityPositively increasing sound pressure produces positive going voltage on MicroLock pin
• Temperature range-40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH)Up to 90%
• Sensitivity selection tolerance (at 1 kHz)±1.5 dB
• ColorsBlack, Beige, Brown, White

Ask for more color and connector variations.
