6061 CORE Omni Submini Mic, Loud SPL, Black, MicroLock

Product

6060 CORE Subminiature Microphones are just 3 mm (0.12 in) in size but pack the audio power of our larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability – three qualities that really matter. These subminiatures have a lower noise floor than any other 3 mm (0.12 in) capsule on the market and they are better able to capture high sound pressure levels without distortion as well.

Features

• Exceptional audio quality
• Uniform, consistent sound between DPA mics
• Extremely rugged and reliable
• Diminutive size made for flexible and easy concealment
• Large selection of clips, windscreens, grids and other accessories
• Modular adapter system fits most professional wireless systems

Specs

• Directional patternOmnidirectional
• Principle of operationPressure
• Cartridge typePre-polarized condenser

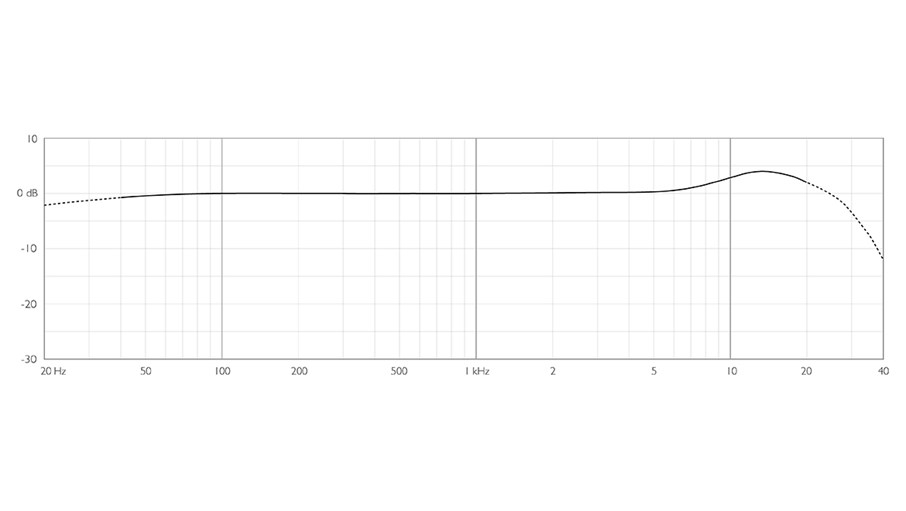

• Frequency response20 Hz – 20 kHz
• Effective frequency range ±2 dB40 Hz – 20 kHz with 4 dB soft boost at 8 – 20 kHz
• Sensitivity, nominal, ±2.4 dB at 1 kHz6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weightedTyp. 26 dB(A) re. 20 μPa (max. 28 dB(A))
• Distortion, THD < 0.5%122 dB SPL RMS, 125 dB SPL peak
• Distortion, THD < 1%125 dB SPL RMS, 128 dB SPL peak
• Dynamic rangeTyp. 102 dB
• Max. SPL, THD 10%144 dB SPL peak
• Rated output impedanceFrom MicroDot: 30 – 40 Ω. From DAD6001-BC: 100 Ω
• Cable drive capabilityUp to 300 m (984 ft) with DAD6001-BC XLR adapter
• Power supply (for full performance)For wireless systems Min. 5 V – max. 10 V through DPA adapter
• With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
• Current consumptionTyp. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
• ConnectorMicroLock, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
• Weight8 g (0.29 oz) incl. Cable and MicroDot connector
• Microphone head size (h x w x d)3.4 / 14.4 mm (0.13 / 0.57 in)
• Capsule diameter3 mm (0.12 in)
• Cable length1.8 m (5.9 ft)
• PolarityPositively increasing sound pressure produces positive going voltage on MicroDot pin
• Temperature range-40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH)Up to 90%

Ask for more color and connector variations.
