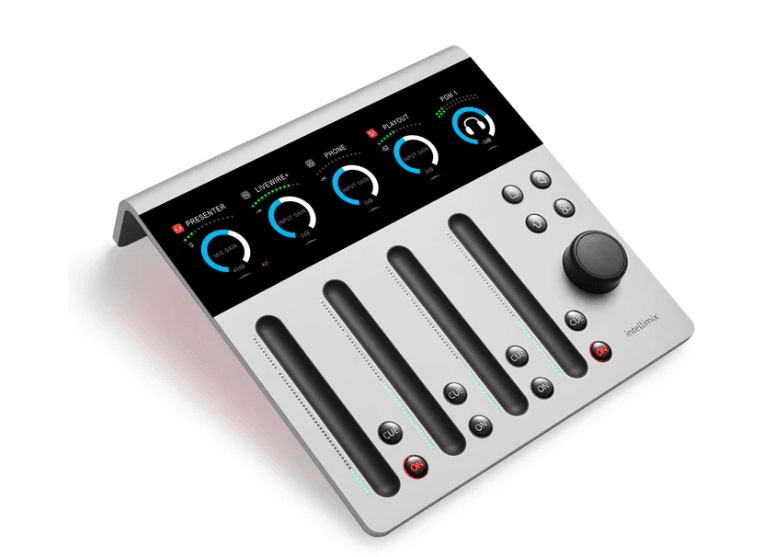

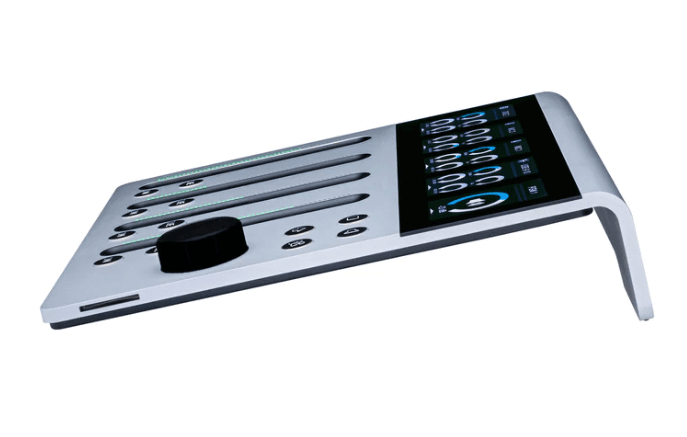

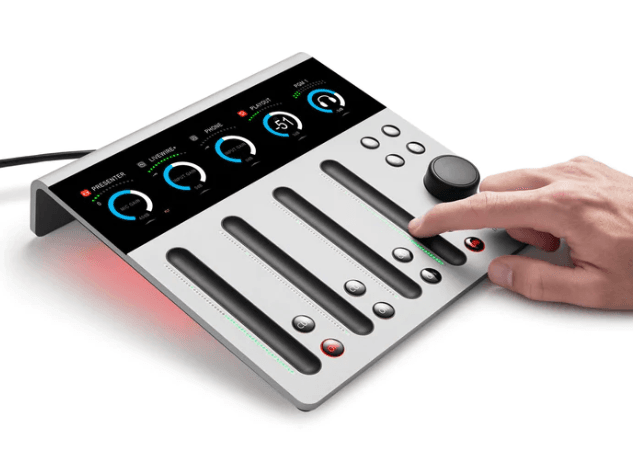

Intellimix FOCUS Desktop Mixer
Product
Join a true revolution. Awarded design and usability are matched with unrivaled audio connectivity. With Intellimix, outstanding features in audio mixing are opening up intuition. G-Touch© faders will guide you. Feed your creativity.
Features
- 4-channel mixer with DANTE AoIP connectivity as standard

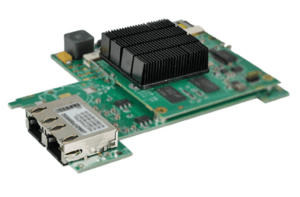

- X64 AoIP connectivity is available ↪ X64 AoIP Extension
- Solid aluminum body with Red Dot awarded product design
- 1x user profile, simplified setting options
- EQ: high: Shelving / mid: Bell / low: Shelving
- Dynamics: Auto-gain compressor (ratio/gain)
- Dynamics: Limiter (threshold, release time)
- 4 simultaneous channels displayed in 1 layer
- Intuitive control + simplified settings
- 4x G-Touch® faders with LED bar graphs + choice of fader modes
- Each of the 4 channel displays shows 1 parameters of your choice
- 1x master display section for overall setting + volume control
- Sealed hard keys + a robust rotary control for tactile feedback
Inputs
- Mic/Line: 2x XLR, balanced, selectable sensitivity -77dBu…+18dBu
- Line analog: 2x XLR, balanced + 2x RCA, unbalanced (max. 24dBu)
- Line digital: 3x AES3/EBU with sample rate converters
- ADAT-S/PDIF: 1x selectable ADAT 8-channel or S/PDIF stereo output
- USB: 1x multichannel PUC2 16 mono / 8 stereo outputs
Outputs
- Line analog: 4x XLR, balanced + 2x RCA, unbalanced (max. 24dBu)
- Headphone: 2x 1/4″ stereo jack
- Line digital: 3x AES3/EBU with sample rate converters
- ADAT-S/PDIF: 1x selectable ADAT 8-channel or S/PDIF stereo output
- USB: 1x multichannel PUC2 16 mono / 8 stereo outputs
- Buses: 1x Program, 1x Aux, 1 Mix Minus (with b-line control)
- GPIO/GPIOs: 2x GPI on optocoupler + 4x GPO from PhotoMOS relay
- Dimensions (packaging): 54.5 x 31.5 x 17.5cm | Weight: 4.5kg

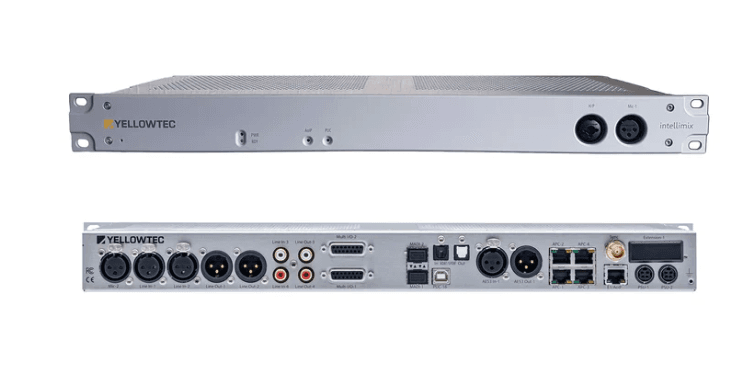

- Dimensions Control Unit: 24.5 x 24.5cm | Base Unit: 19”
