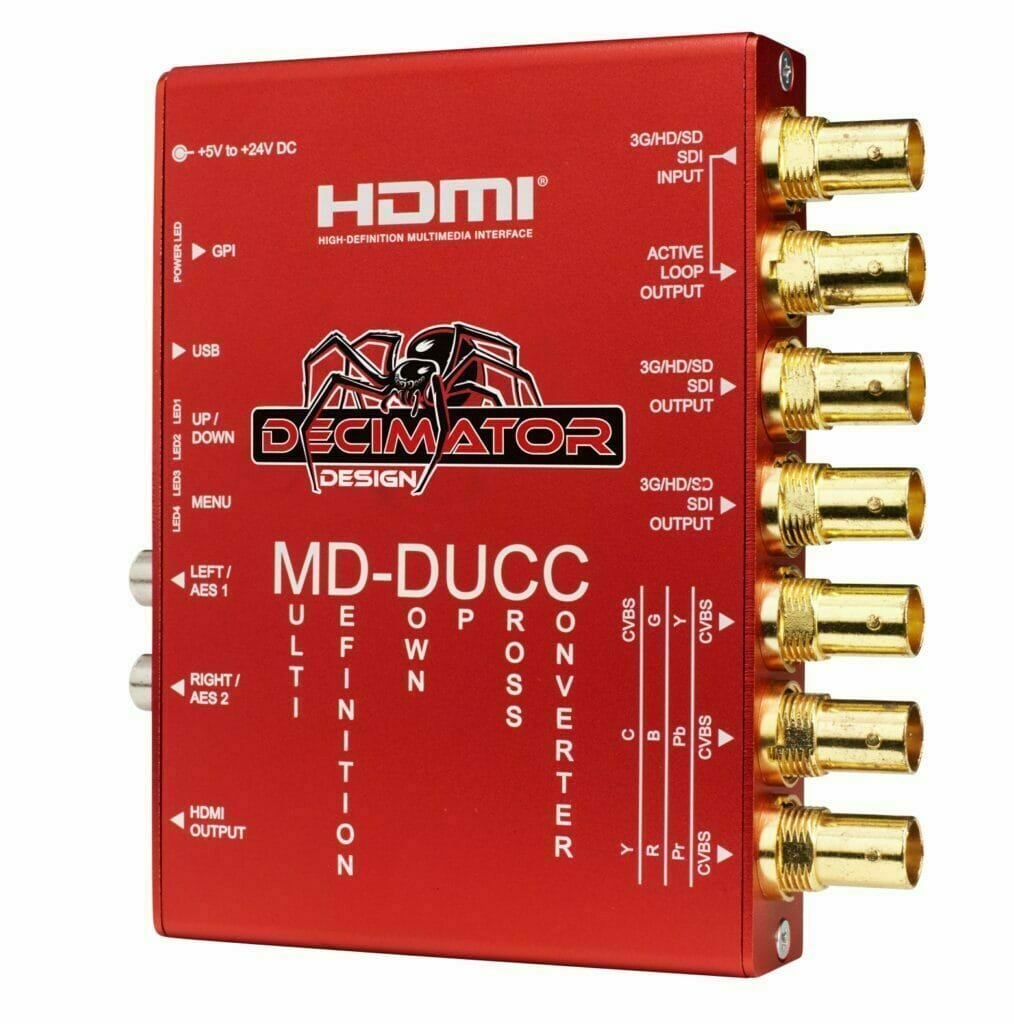

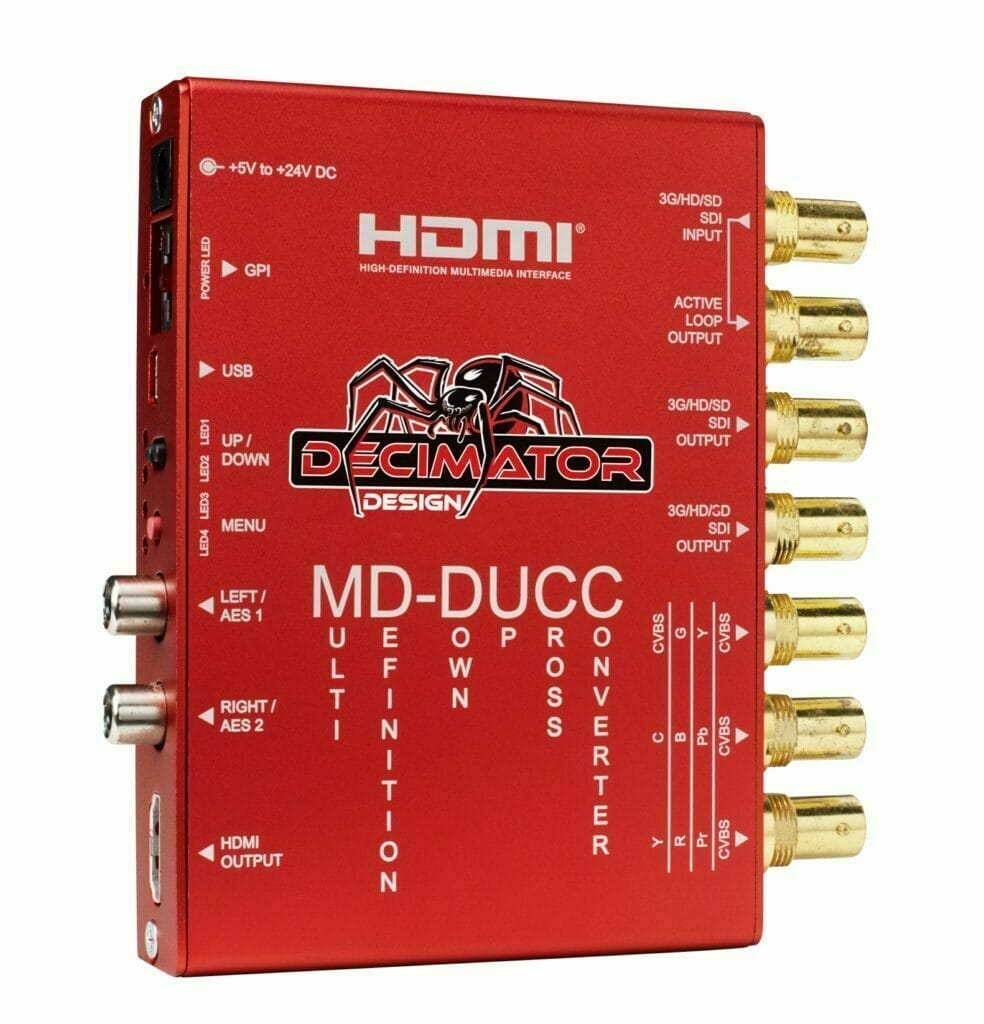

MD-DUCC

Tuotetiedot

Decimator Multi-Definition Down Up Cross Converter -konvertterilla voidaan konvertoida niin digitaaliset kuin analogiset signaalit. Laite tunnistaa automaattisesti 26 eritasoista signaalia (formaattia).

Tässä osa toiminnallisuuksista:

• Auto detects 3G, HD or SD (26 Formats in total)
• Full 10-bit data path and multipoint interpolation
• Professional motion-adaptive de-interlacing
• True Down Up Cross conversion
• Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with
• individual selection for HD to HD, HD to SD, SD to HD and SD to SD
• conversions
• Full 16-Channel Audio metering
• Adjustable Graticules Generator
• Text Overlays
• HDMI output
• Selectable analogue video output from either: 3 x CVBS out / YPbPr out / RGB out / CVBS & YC out
• 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed
• GPI on RJ-45 for Tallies
• 3G/HD/SD-SDI Active Loop-Through Output
• De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level
• LEDs for status and buttons for basic configuration
• USB port for control and firmware updates
• Locking DC Power Socket
• The following is also included with the unit: Power Supply, HDMI Cable, USB Cable and Mounting Bracket
