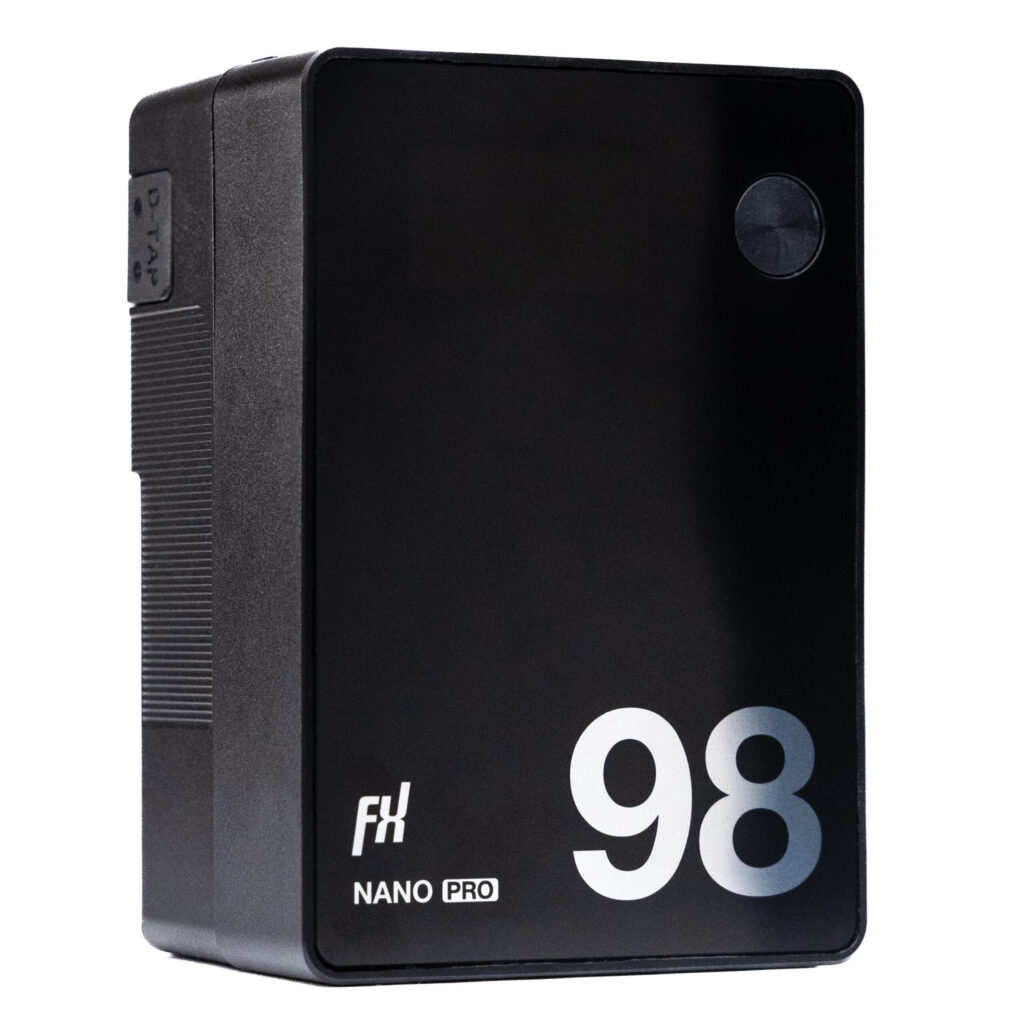

NANO PRO 98Wh

Product

This ultra-compact V-mount battery is engineered for maximum energy and volume efficiency, utilizing high-rate lithium cells with a 98Wh capacity that supports up to 13A high-current discharge and delivers a peak output power of 156W. It features a smart LCD screen with an intelligent display that provides real-time information on battery capacity, input/output voltage, power, charge/discharge time, cycle count, and internal temperature, and it also supports communication with cameras to display battery status directly on-screen. An integrated intelligent BMS offers comprehensive protection against overvoltage, overcurrent, over-temperature, overcharge, over-discharge, and overload. The battery includes a USB-C PD100W input/output port for ultra-fast charging and high-power discharge, supported by a smart thermal management system to ensure stable and safe 100W output. Additional outputs include two USB-C 18W ports for powering multiple devices simultaneously, a USB-A fast charging port for broad compatibility, and two D-Tap outputs supporting up to 13A combined output to drive professional-grade equipment. All output ports can operate simultaneously without interference. The V-mount plate is designed with both 1/4 and 3/8 threaded holes for flexible mounting and rigging of professional accessories, and the D-Tap and USB ports are equipped with dust caps for enhanced durability and field protection. The housing is constructed from a combination of metal and V0 flame-retardant plastic, featuring a metal-like finish button design that enhances both safety and handheld comfort. Fully compatible with professional V-mount chargers and USB-C charging options, this battery is ideal for a wide range of applications — from smartphones and laptops to video lights and cinema cameras — making it a versatile power solution for both consumer and professional users.

Features

• Ultra-Compact V-Mount Battery Structure
• 14.4V/6.8Ah/98Wh Capacity
• 13A High Current Output

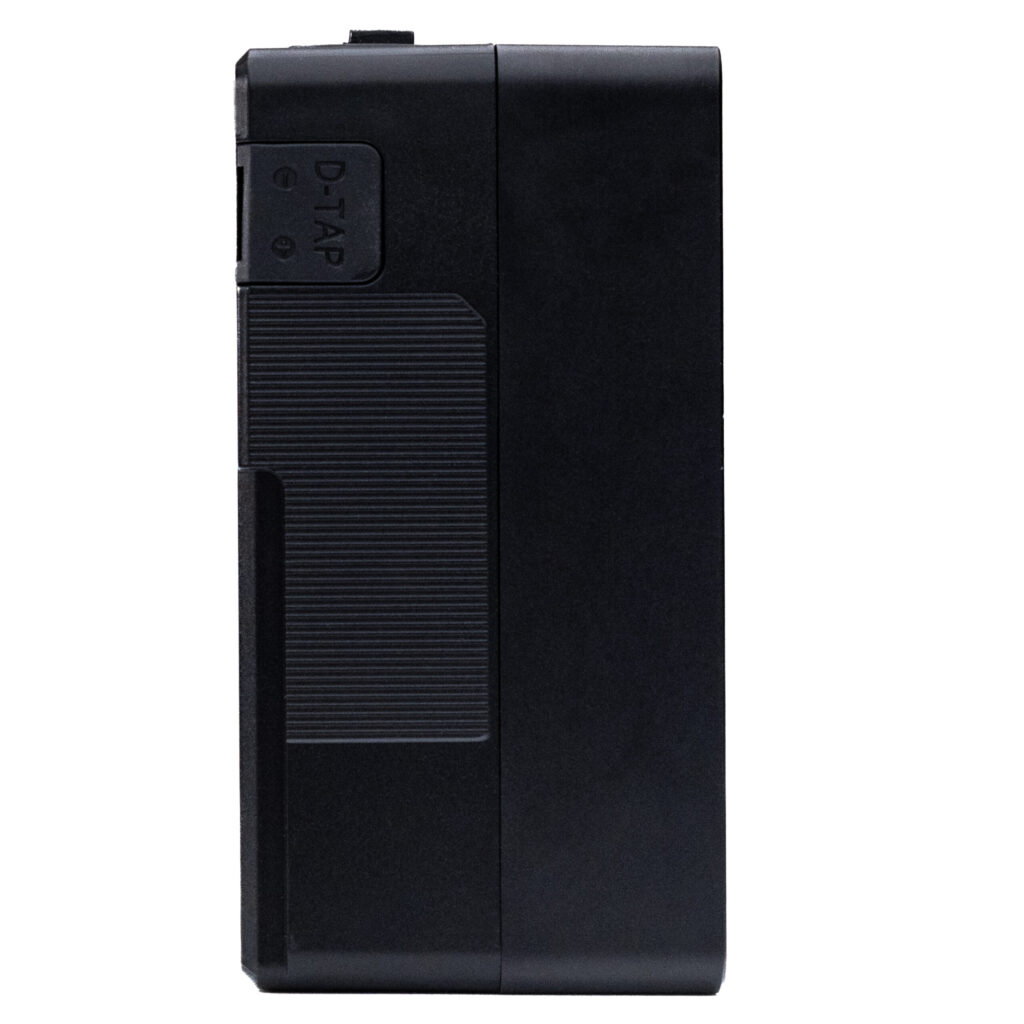

• 2*D-Tap Outputs
• USB-A Output Supporting QC3.0 Protocol

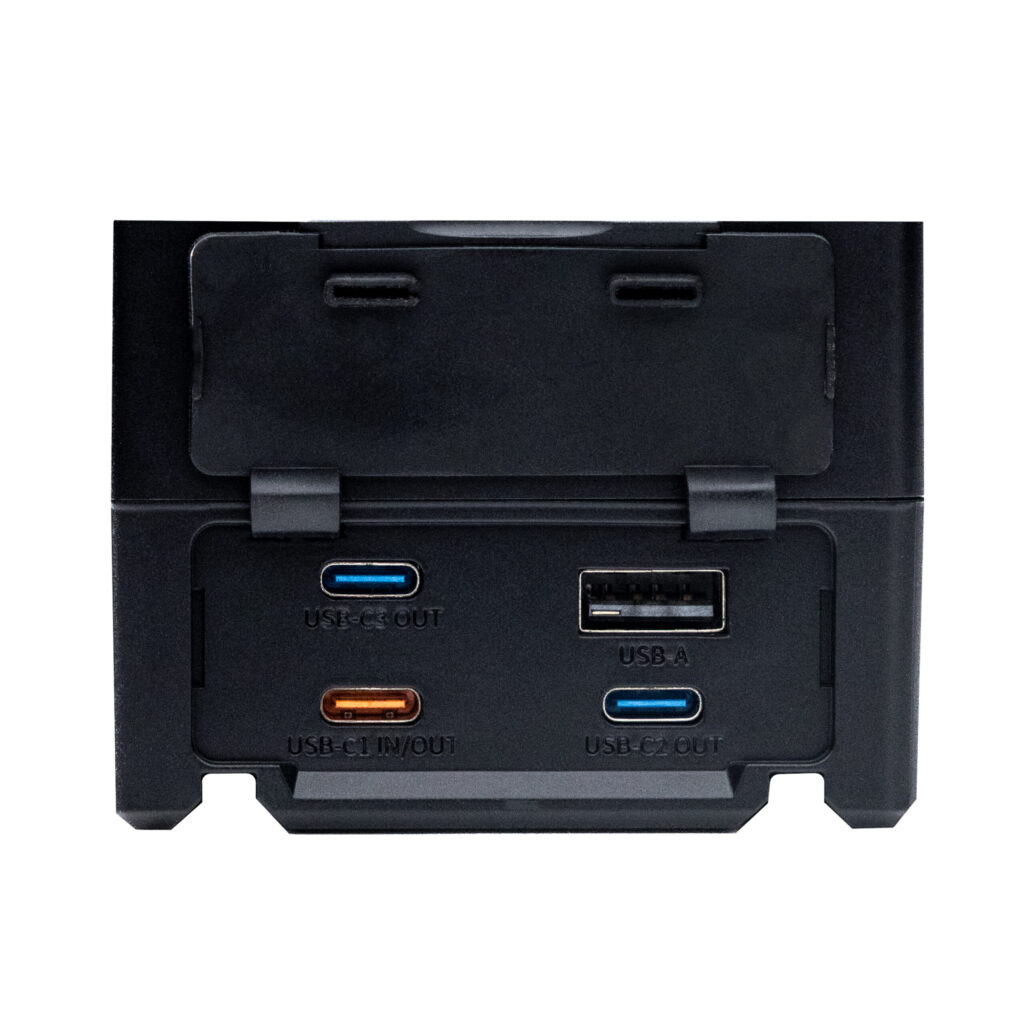

• USB-C 100W Super Fast Charging (Input/Output)

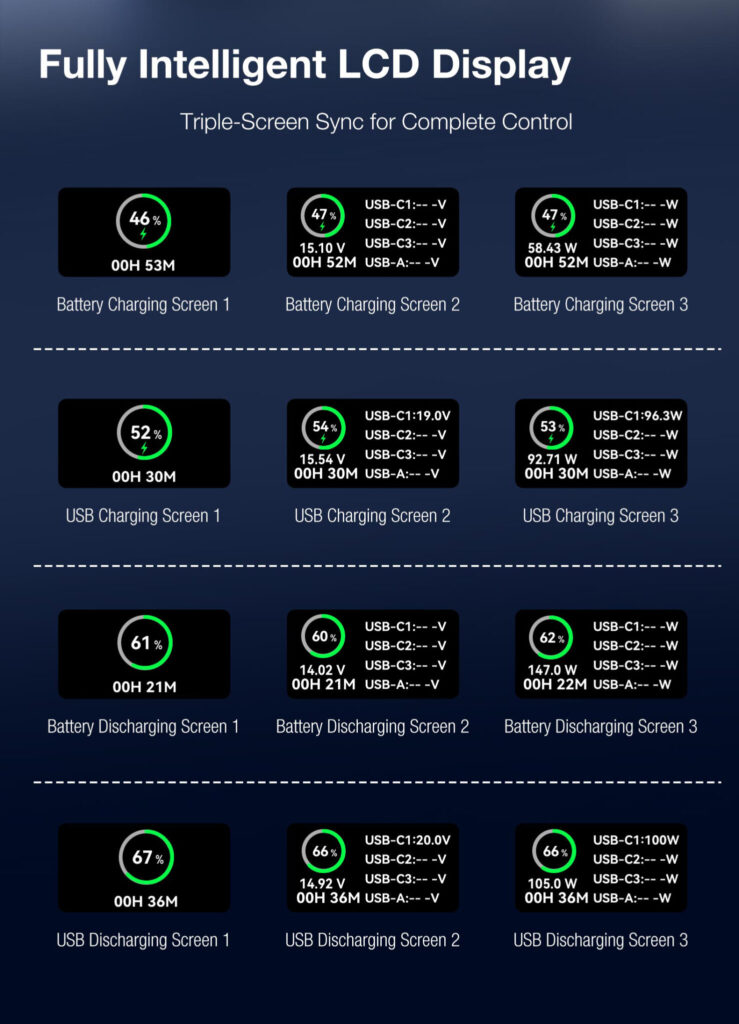

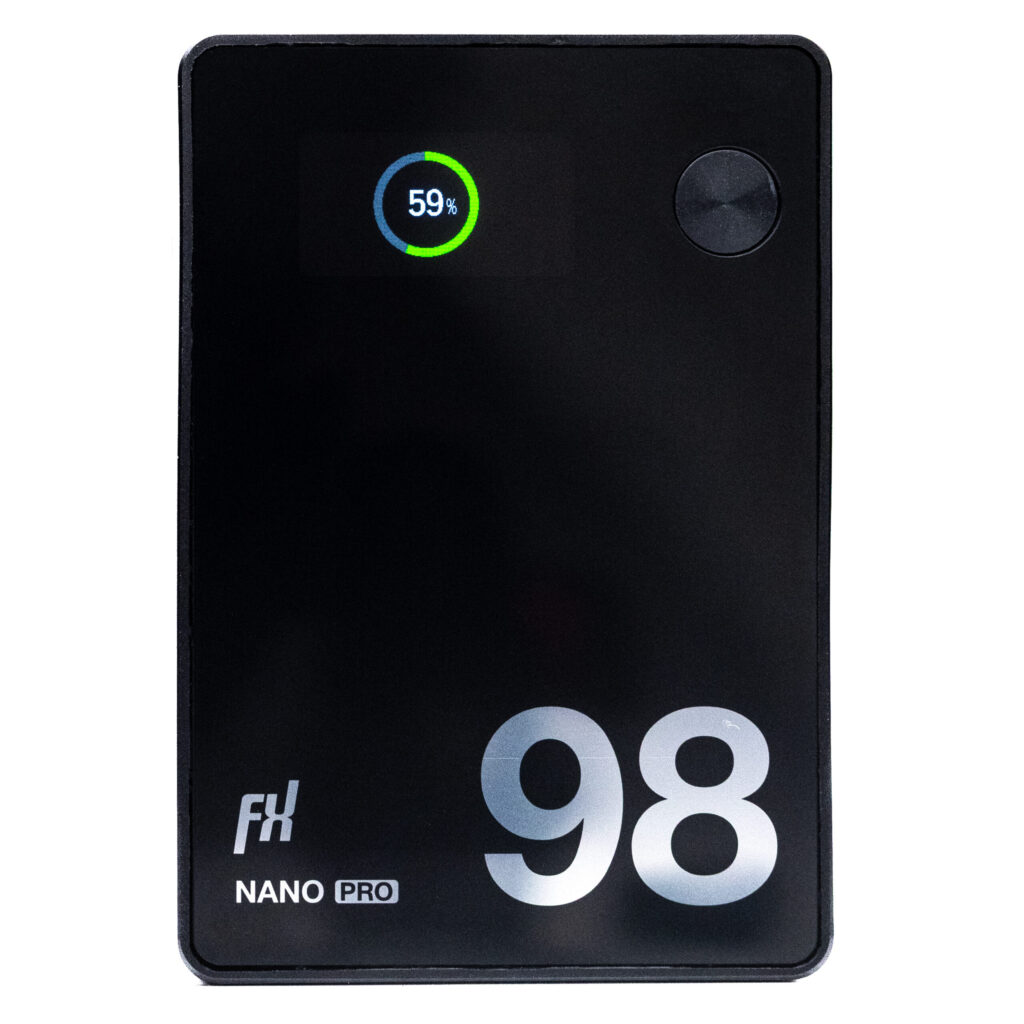

• Integrated LCD Display for Real-Time Intelligent Battery Monitoring

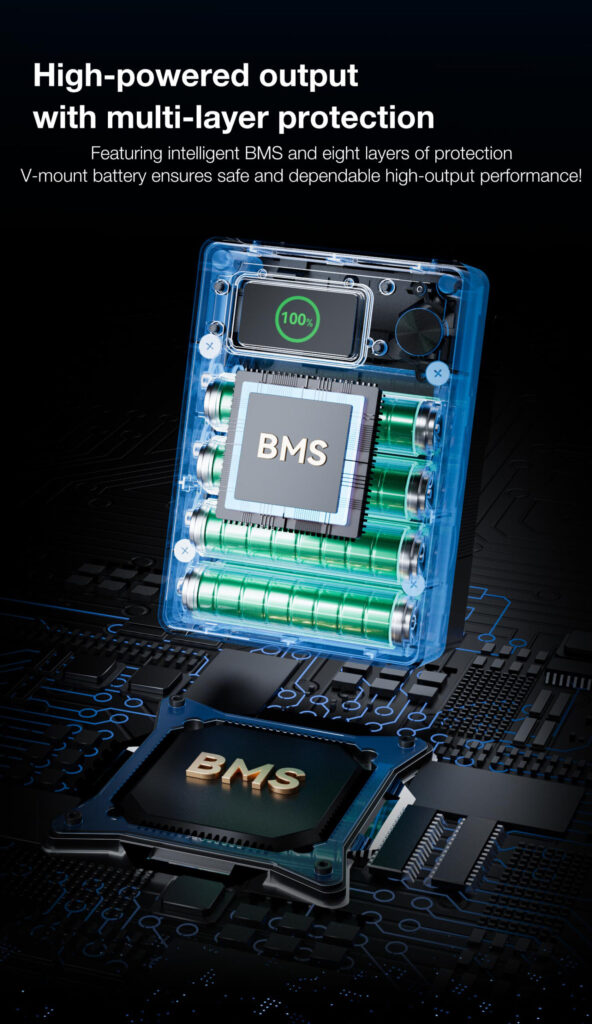

• Smart Lithium Battery Protection Design

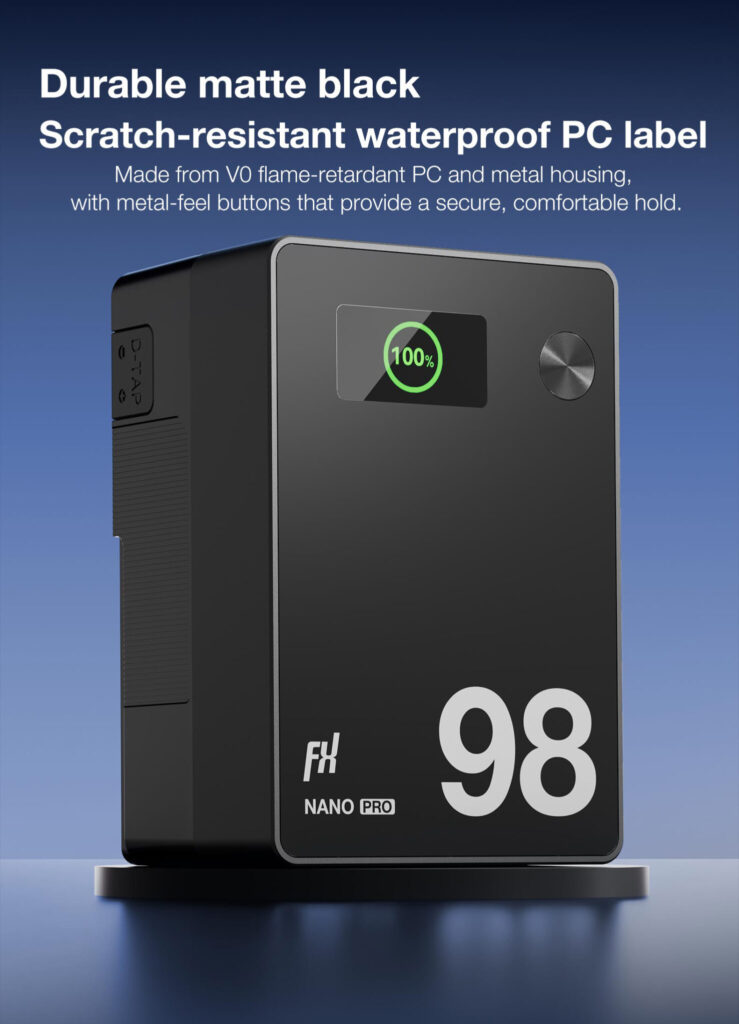

• Hybrid Metal and Plastic Housing
• Water-Resistant and anti-scratch Matte Black Label

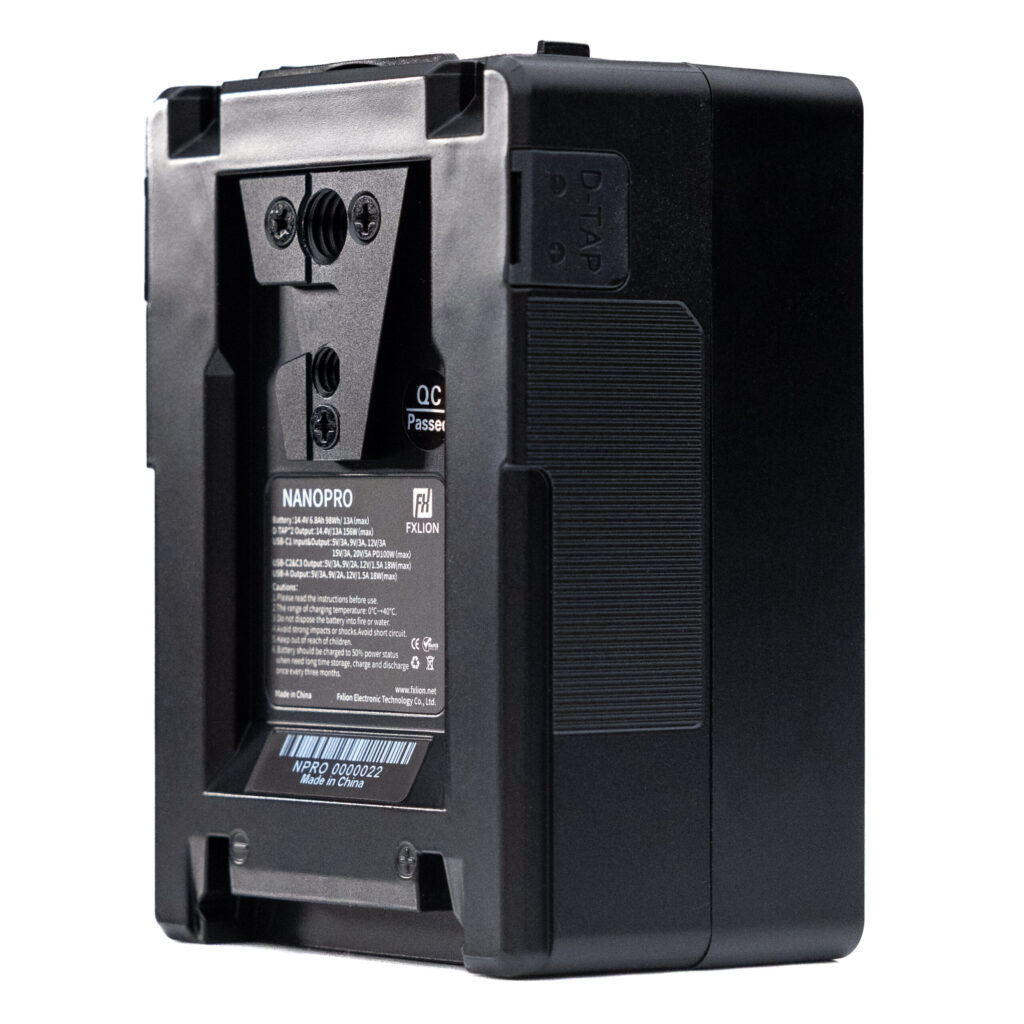

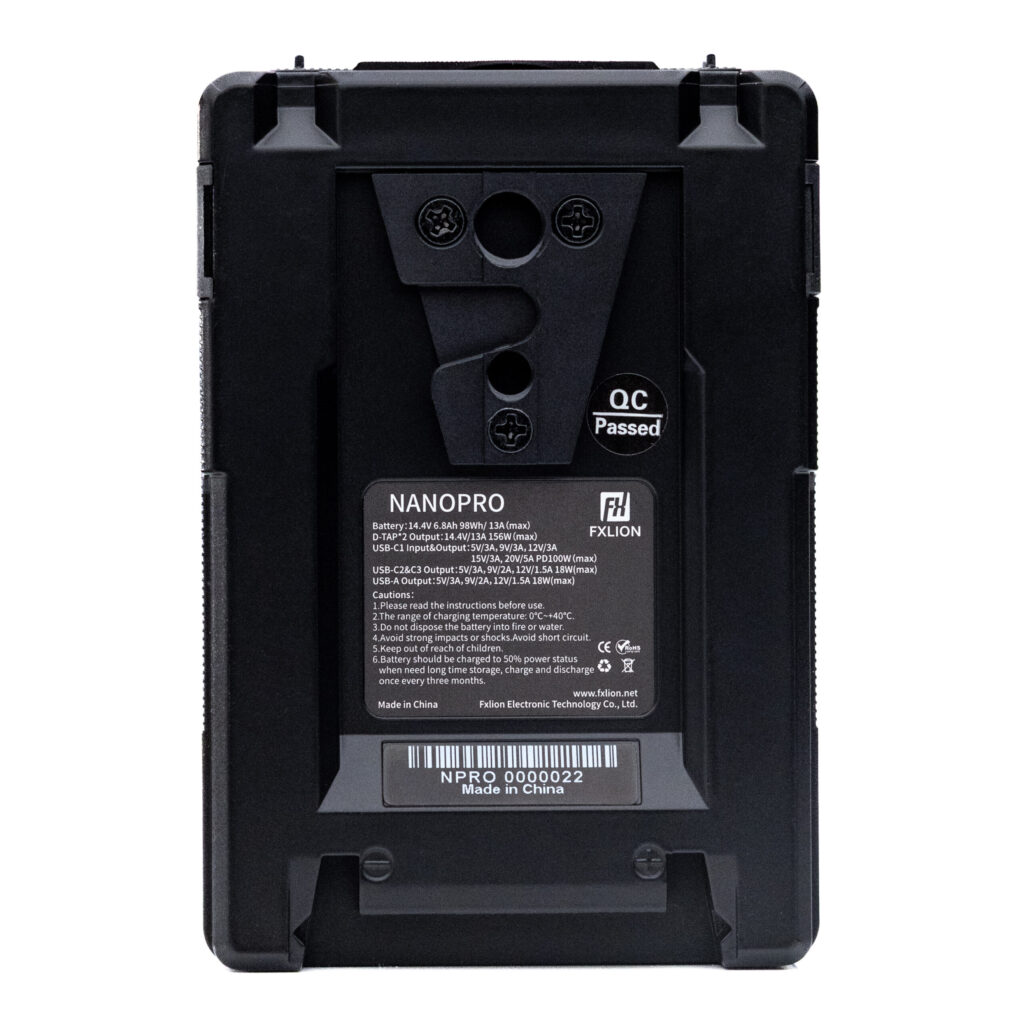

• V-Mount Plate with 1/4 and 3/8 Threaded Holes

Specs

• Capacity: 6.8Ah / 98Wh
• Voltage: 14.4V
• Mount: V-Mount
• Working Current: 13A(Max)
• Working Power: 156W(Max)
• D-Tap Output*2: 10~16.8V/13A(Max)
• USB-A Output: 5V/3A 9V/2A 12V/1.5A Supports fast charging protocols including QC2.0, QC3.0, FCP, and BC1.2.
• USB-C1 Input/Output: 5V/3A 9V/3A 12V/3A 15V/3A 20V/5A 100W(Max)
• USB-C2&C3 Output: 5V/3A 9V/2A 12V/1.5A 18W(Max)
• Operating Temperature: -20°C to +55°C
• Charging Temperature: 0°C to +40°C
• Storage Temperature: -20°C to +45°C
• Dimensions: 108.7(L)mm×74(W)mm×54.4(H)mm
• Weight: 612g
• Optional Chargers: Compatible with professional V-mount battery chargers and USB-C chargers that support the PD protocol for smartphones and laptops.
• Note: PD100W charging requires an E-mark certified USB-C cable.
