PowerStar Mini Triple Play

Product

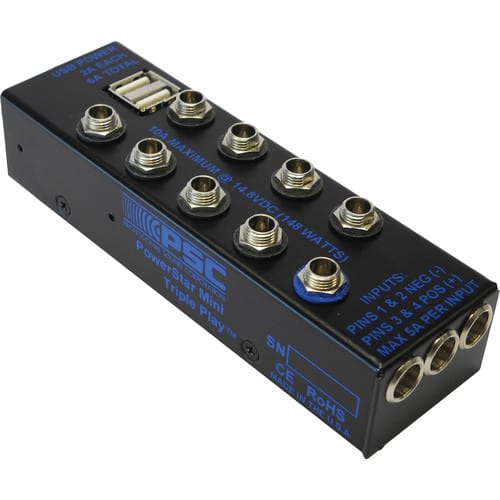

The PowerStar Mini Triple Play from PSC is a power distribution system that provides a convenient way to distribute clean, quiet, reliable 12 VDC power from one or more rechargeable batteries. It can be used to power all your ENG (Electronic New Gathering) gear in a bag or small cart for applications using wireless mics, mixers, recorders, USB devices, and more.

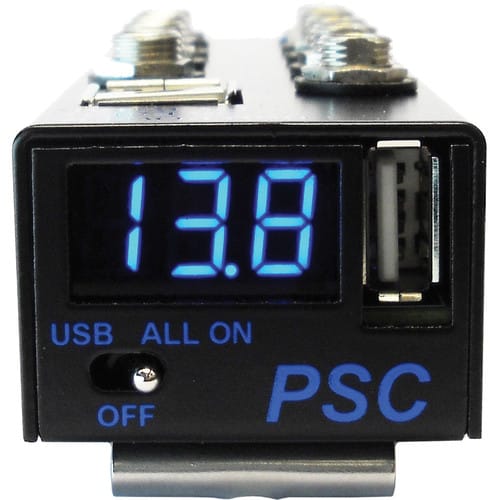

The Mini Triple Play features nine main outputs. Each output can deliver up to 2 amps of continuous current and the total current limit is 10 amps. A top-panel mounted 3-way power switch controls the entire operation. When switched to the left, only USB power connectors will be powered on to allow continued charging of your USB devices. When switched to the center position, everything is turned off. When switched to the right side, everything is powered on. In addition, one connector is always on and has a blue ring to identify it.

POWER STAR MINI TRIPLE PLAY

Specs

• Main Output Current
  10 A global maximum, 2 A maximum per output
• USB Output Current
  6 A global, 2 A maximum per output
• Power Switch Recessed toggle
• RF Filter Range 34 dB isolation from 100 to 900 MHz

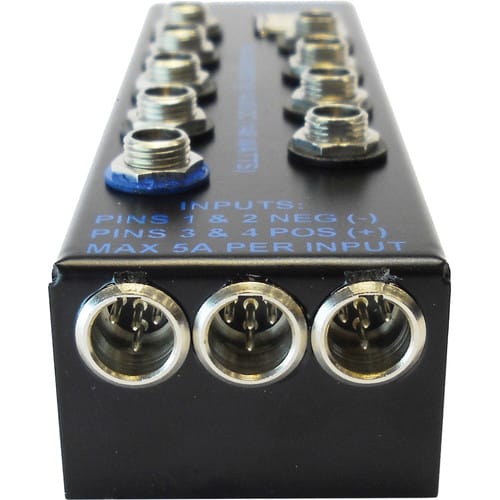

• Input Connectors 3x 4-pin mini-XLR, wired pins 1 & 2 negative (-), pins 3 & 4 positive (+)
• Output Connectors 9x Switchcraft coaxial power connectors, center positive (+)
• Dimensions 133.7 mm x 40.6 mm x 31.7 mm
• Weight 170 g
