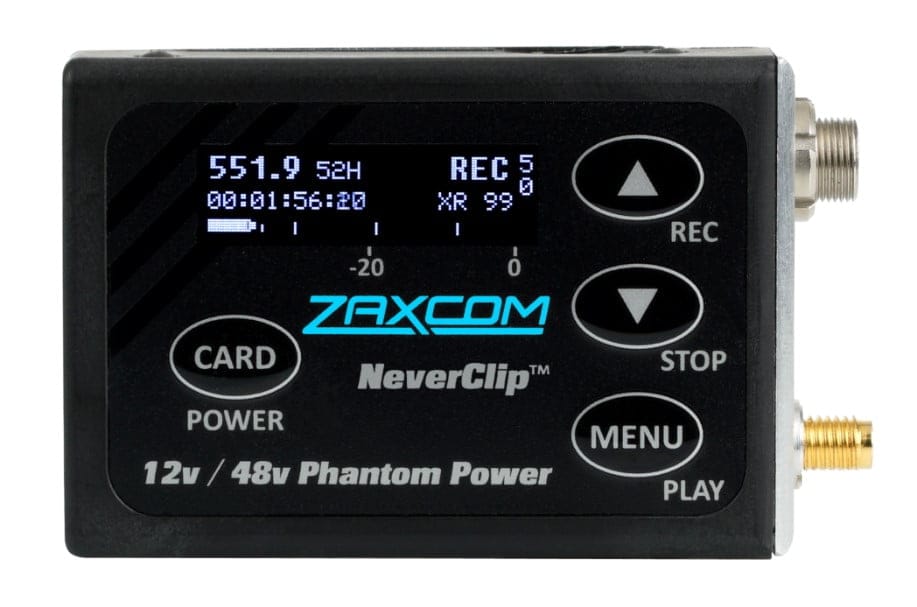

ZMT4 – Wireless Transmitter

Product

he ZMT4 has taken digital recording wireless to the next level with longer battery life, NeverClip™ in all modes, and power for all microphones – from a 5V lavalier to a 48V phantom powered mic – and a new ultra-low noise preamp.

Deliver pristine audio quality with our ZMT4, an incredibly small, lightweight, talent-friendly transmitter ideal for sound professionals. Weighing only 2.2oz (62g), the ZMT4 is constructed from a high-strength, impact-resistant nylon polymer casing with rounded edges and machined metal that’s cool to the touch.

MICROPHONE CONNECTIVITY
The ZMT4 has a wide range of power to cover nearly any professional analog microphone – 5V lavalier mics as well as condenser, balanced dynamic, or ribbon microphones running at 12, 24, 36, or 48V.

Perfect for boom pole operation, the ZMT4 can be positioned at the top of a boom pole directly behind the microphone instead of near the bottom. By removing the internal or external cable, operators can eliminate cable noise that can affect the audio track. Boom microphone connectivity is via a 3-pin balanced LEMO.

ENCRYPTED AUDIO
The ZMT4 transmits using 100% digital modulation allowing audio to be fully encrypted. Digital encryption is the only way to keep all audio transmission private. A digital transmission also provides audio quality superior to all analog systems.

MICROPHONE PREAMP
The ZMT4 features an all-new preamp design. The preamp and A-D combination now utilizes NeverClip™ with both lav and balanced boom mics, making the environment and self-noise of the microphone the dominant noise components.

NEVERCLIP™
NeverClip™ is available in all modes on the ZMT4. It works by utilizing two A-D converters to extend the dynamic range of the transmitter to 136 dB, so there’s never any limiter distortion.

INTERNAL RECORDING
Audio is simultaneously transmitted and recorded to a removable microSD card using the highly reliable MARF (Mobile Audio Recording Format) which eliminates file corruption common to recordings due to a dead battery or early card removal.

ZMT4 is available in the following frequency bands:
“.5 band” (512-608 MHz)
“.6 band” (578-698 MHz)
