A20-Monarch – 470-1525 MHz Antenna

Product

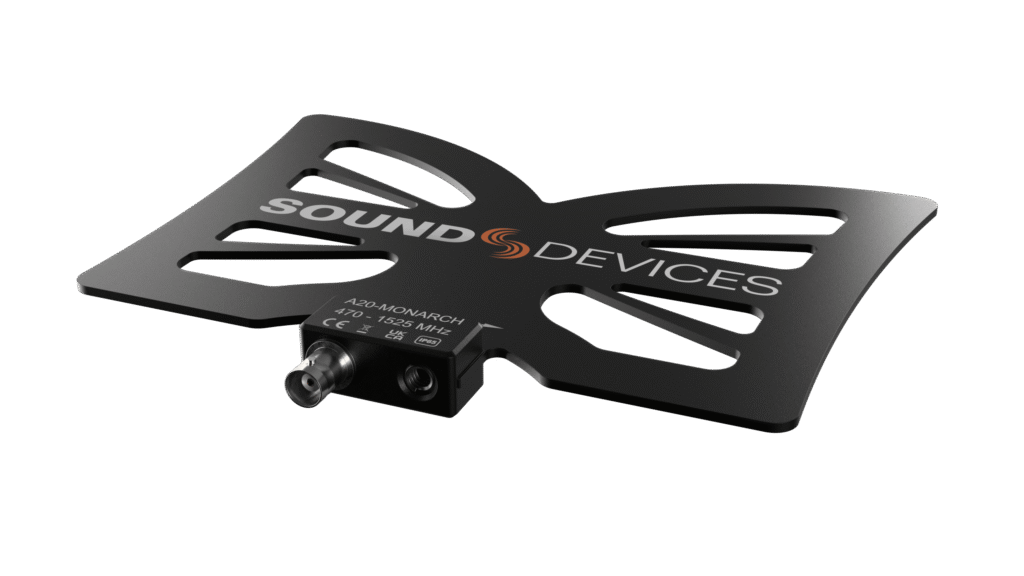

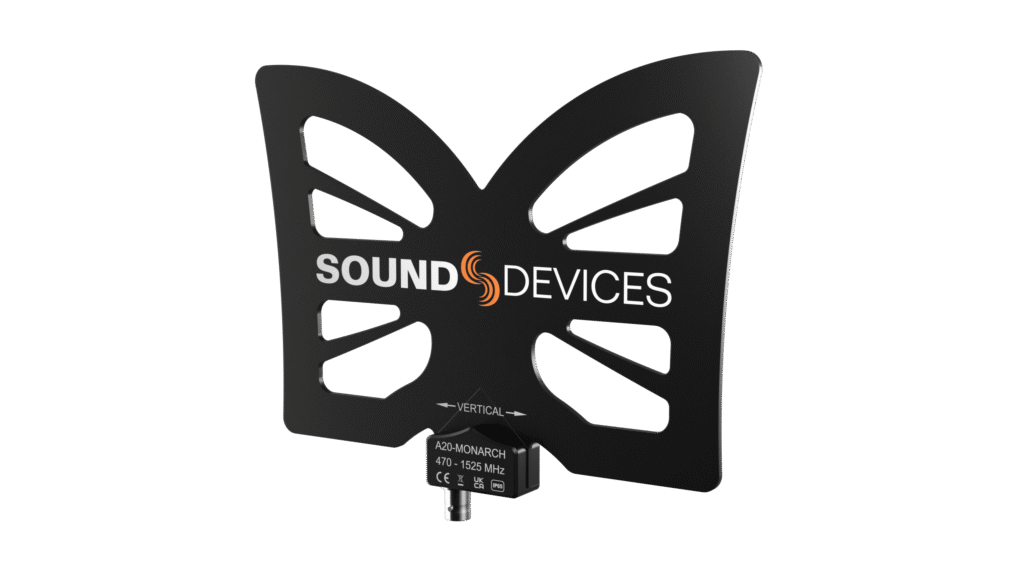

The A20-Monarch is an omnidirectional, wide-bandwidth (470-1525 MHz) antenna. It provides uniform coverage and gain across the exceptionally wide SpectraBand tuning range of the Sound Devices Astral series wireless products. The antenna is paired with a multifunction clamp and articulating arm, as well as two accessory cables.

Specs

• Frequency range 470 MHz – 1600 MHz
• Gain 2.2 dBi
• Pattern Omnidirectional
• Return Loss Better than 15 dB across entire 470 – 1600 MHz range
• Mounting Threads ¼-20
• Dimensions (H x W x D) 17.0 cm x 21.0 cm x 1.7 cm
• Weight 0.12 kg (unpackaged)

Includes

• 1x A20-Monarch antenna with BNC-F connector and 1/4″-20 female threaded mount
• 1x adjustable clamp and articulating arm with 1/4″-20 male threaded mount
• 1x 30 in/75 cm BNC-M to BNC-M cable
• 1x 18 in/45 cm BNC-M to SMA-M cable
