Focus 22 Fluid Head 100mm

Product

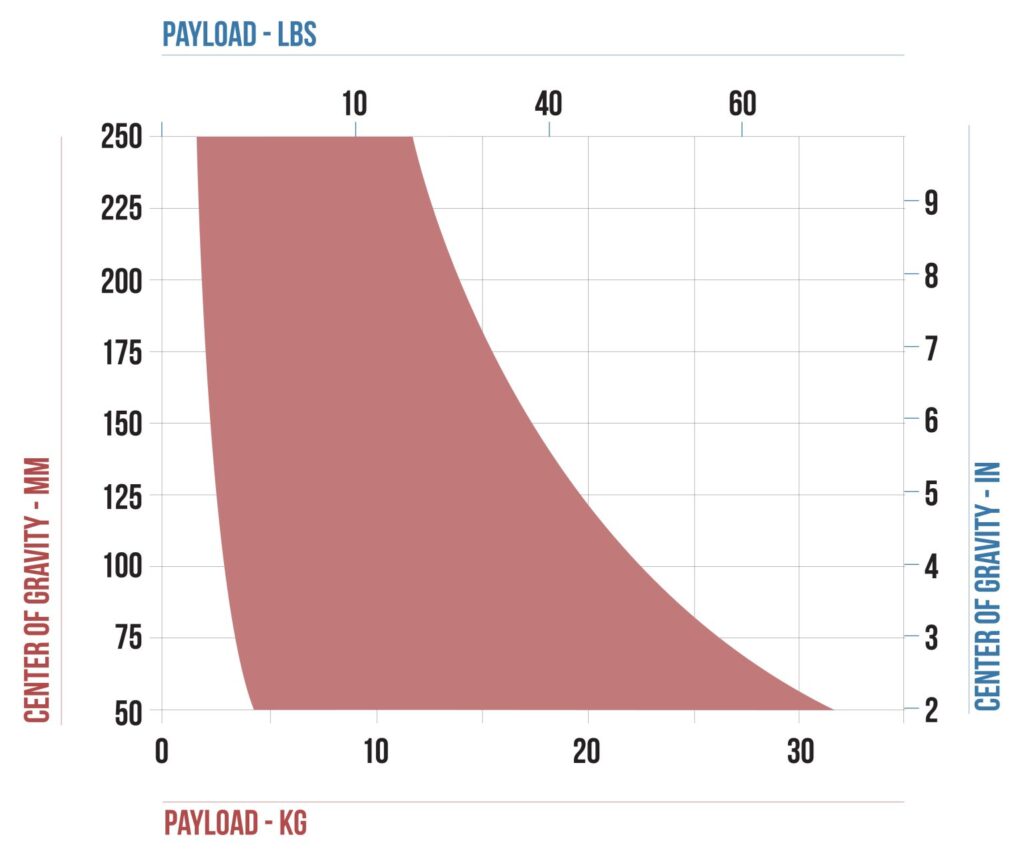

The Focus 22 fluid head offers the widest payload range of the Focus Series from 3 kg (7 lbs) to 25 kg (55 lbs)

Built with extensive use of lightweight magnesium alloys and high resistance polymer composites the Focus 22 weighs only 3.9 kg (8.6 lbs) and represents the most advanced solution of the Focus line featuring the patented Cartoni “wing” continuously adjustable counterbalance setting, and a continuously variable patented fluid damping system on both pan and tilt movements.

Features

• Tilt angle of +/- 90°
• Temperature range is -40°/+60° Celsius
• Sliding camera plate with Euro-style quick release system
• Telescopic orientable pan bar
• Illuminated bubble level
• 100mm bowl (also in 150mm version)
• Easily-readable numerical counterbalance reference

The Focus 22 is specifically designed for the most recent ENG digital & CineStyle cameras like the ones from Arri, Red, Blackmagic Design, Canon, Sony and others…

The professional grade materials, matched to the outstanding Cartoni construction quality, makes the Focus 22 the perfect solution when searching for a fluid head built to last at a fair price point.

Interfaces with all 100 mm bowl base tripods.

Specs

• Weight 3.9 kg
• Minimum Payload Capacity 3 kg
• Maximum Payload Capacity 25 kg
• Bowl Diameter 100 mm
• Fluid Drag Continuous
• Counterbalance Continuous
• Tilt Range +/-90°
• Operational temperature -40°/+60° Celsius

Included

• Focus 22
• Telescopic Pan bar Focus 18-22-Master 25
• Tie down knob for Fluid Heads 100mm
• Camera plate Focus 12-18-22

Register your product within 30 days from date of purchase/invoice to receive further two (2) year warranty for the unprecedented free five (5) year warranty.
