eSMART BG-DU-REG – Power distributor

Product

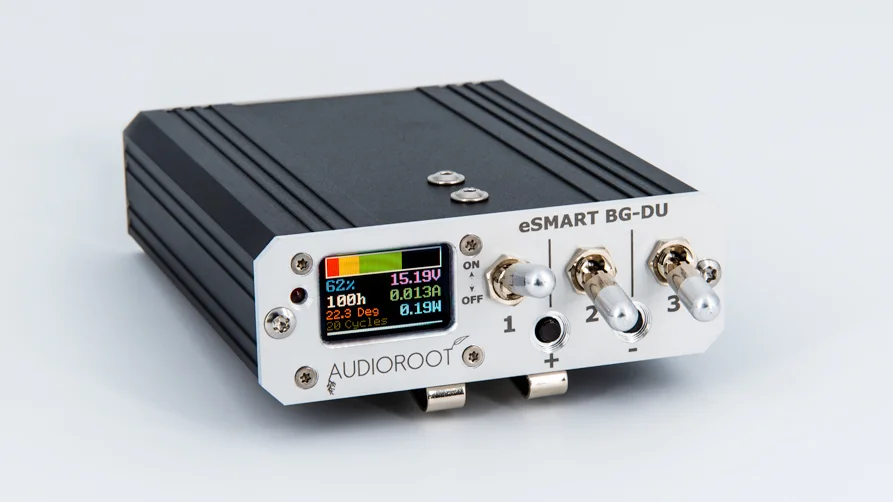

The eSMART BG-DU is a compact and lightweight powering box with 8 protected outputs, 3 locking switches, and a full-featured fuel gauge.

This product was designed for use in large sound bags or small location carts. The power distributor can be connected to any battery type (SLA, NI-MH or LI-ION) and the fuel gauge provides all the information required to monitor the battery’s state of charge (voltage, current, power, etc…).

The eSMART BG-DU uses an internal coulomb counter and a calibration routine to measure the battery’s true capacity and display its remaining capacity in real time. This power distributor is also fully compatible with our full line of Li-XXwh smart batteries.

• Real-time monitoring of the battery’s SOC: remaining capacity (%), run time estimation, battery voltage, power consumption, power and coulomb counter

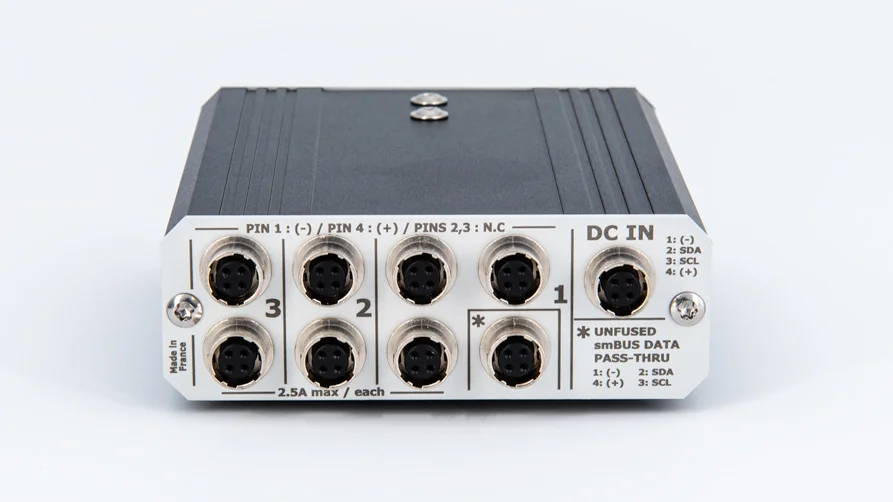

• 8 switchable outputs using 3 locking switches
• Polyswitch 2.5A resettable fuses on each output
• A blinking LED indicates when the battery capacity falls below 10 %
• Compatible with any battery ranging from 6 to 24V
• Compact and lightweight : (129g , 85x75x30mm)
