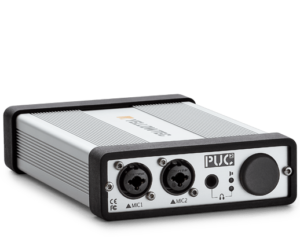

PUC2 Line – USB audio interface

Product

PUC2 Line is a high-definition USB audio interface with professional digital and analog audio input and outputs. It delivers highest available audio standards up to 192kHz sample rate at 24-bit word-lengths with a sensational dynamic range of 114dB. The plug’n’play concept allows fast handling plus the optional use of our ASIO drivers for advanced operators.

PUC2’s Zero Latency Monitoring allows you to monitor your audio signal in real-time. Choose between listening to the input signal, or the return path arriving via USB. For further monitoring convenience, an AUX output lets you connect a pair of headphones for a quick and easy audio signal check.

The computer connection panel features both an AES-3 input and output on XLRs, along with an USB port and a 3.5mm socket to configure zero latency monitoring modes. Since PUC2 is USB-powered, there is no bulky power supply and there are fewer cables to connect.

Specs

 ✓  Plug’n’play concept allows for fast handling (Windows, Mac, Linux)

 ✓  Delivers highest available audio standards

 ✓  192kHz sample rate at 24-bit word-lengths

 ✓  Dynamic range of 114dB

 ✓  OPTION International Levels: 0dbFS = +18dBu mit +4dBu / 14dB headroom

 ✓  Fully USB-powered (USB-2.0 Type B)

 ✓  Analog inputs + outputs

✓  Digital inputs + outputs

✓  AES-3 input + output on XLR

 ✓  3.5mm socket to configure zero-latency monitoring

 ✓  ASIO driver for advanced operators

 ✓  Sturdy aluminum unibody serves as a conductor + heat sink

 ✓  Dimensions: 18.5 x 12.7 x 4.5cm  |  Weight: 0.6kg

 ✓  An optional PSU is available to power PUC2 Line

High-definition USB Audio Interface to optimize your audio quality
