Lifto 25/S – Motorized Elevation Column for PTZ Camera

Product

Cartoni Lifto 25 /S Motorized Elevation Column with remote control unit, SDS tripod, smart lock spreader & rubber feet

The Cartoni Lifto 25/S was specifically designed for PTZ cameras, bringing extremely smooth on-air quality vertical movements and creativity to enhance productions. This solution adds to the Pan & Tilt, and zoom control, additional height movement as a natural feature.

Lifto 25/S Motorized Elevation Column offers broadcast quality performance and height range at a competitive price.

Setting up in minutes, the Lifto 25/S with an easy and reliable hardwire hand control unit allows for continuous movement throughout the range and 3 position pre-settings. The perfect solution for small studios, educational, live events and House Of Worship.

The easy and reliable control unit is connected via wire or optional Bluetooth. The manual control has 3 position pre-settings for fast routine repositioning.

Lifto 25/S Motorized Elevation Column performs great versatility in height range, from 60 cm (23.6”) minimum to 254 cm (100”) maximum. The patented Smart Deployment Series (SDS) two stage tripod with Smart-Stop Mid-Level spreader are engineered for great stability and rigidity . The extremely smooth and silent motorized column offers a two stage, 66 cm (26”) stroke at 25 kg/55 lbs capacity.

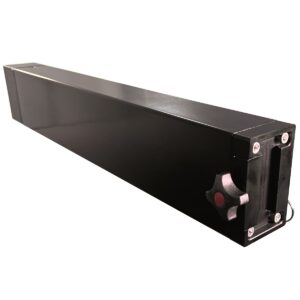

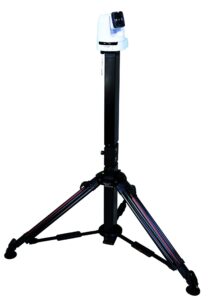

The Lifto 25/S can be converted to a Lifto 25/S Twin with the APTZ008 column or Lifto 25/S PRO or TwinPro by purchasing APTZ009 column upgrade and KPTZ0206 RX box.

The Lifto 25/S unit can be packed in a compact high quality wheeled case for easy transportation, available to order as an accessory.

Features

• Motorized elevation column optimized for use with PTZ cameras
• Extremely silent elevation motor
• Height range 60cm (23.6”) to 254 cm (100”) – measured on dolly (ordered separately)
• Maximum payload 25 kg (55 lbs)
• Smart deployment tripod for great torsional rigidity and fast set-up
• Bluetooth & wired remote control unit
• 3 position pre-settings for fast routine repositioning
• Safe release camera attachment for PTZ cameras with camera safety ring
• XLR connector
• Compatible with additional column
• Optional Dolly for easy movements around location

Recommended for:

• ILME-FR7K – Sony FR7
• PT30X-SDI-GY-G2 – PTZOptics 30X-SDI Gen 2
• 6022C011 – Canon CR-N700 4K
• 5157C002 – Canon CR-N300 4K (white)
• 4839C001 – Canon CR-N500 Professional 4K
• BDP4KBUNDLE-WWW – BirdDog P4K 4K Full NDI (white)
• BDP4KBUNDLE-BBB – BirdDog P4K 4K Full NDI (black)
• AW-UE160WPJ – Panasonic AW-UE160 UHD 4K (white)
• AW-UE160KPJ – Panasonic AW-UE160 UHD 4K (black)

Specs

• Weight 11.8 kg
• Capacity 25 kg
• Minimum Height 60 cm
• Maximum Height 254 cm
• Maximum height (feet) 240 cm
• Maximum height (dolly) 254 cm
• Material Aluminum
• Dimensions φ 276 x 861 mm
• Speed 38 mm/s
• Column interface fixing method Safe release camera plate
• Stroke 660 mm
• Footprint diameter (minimum height) 1306 mm
• Input voltage 24 V
• Dual voltage power supply 100/240V 50/60Hz
• Maximum current consumption 9 A
• Operational temperature -10°C/+40C
