Lifto 25/S Pro – Motorized Elevation Column for PTZ Camera

Product

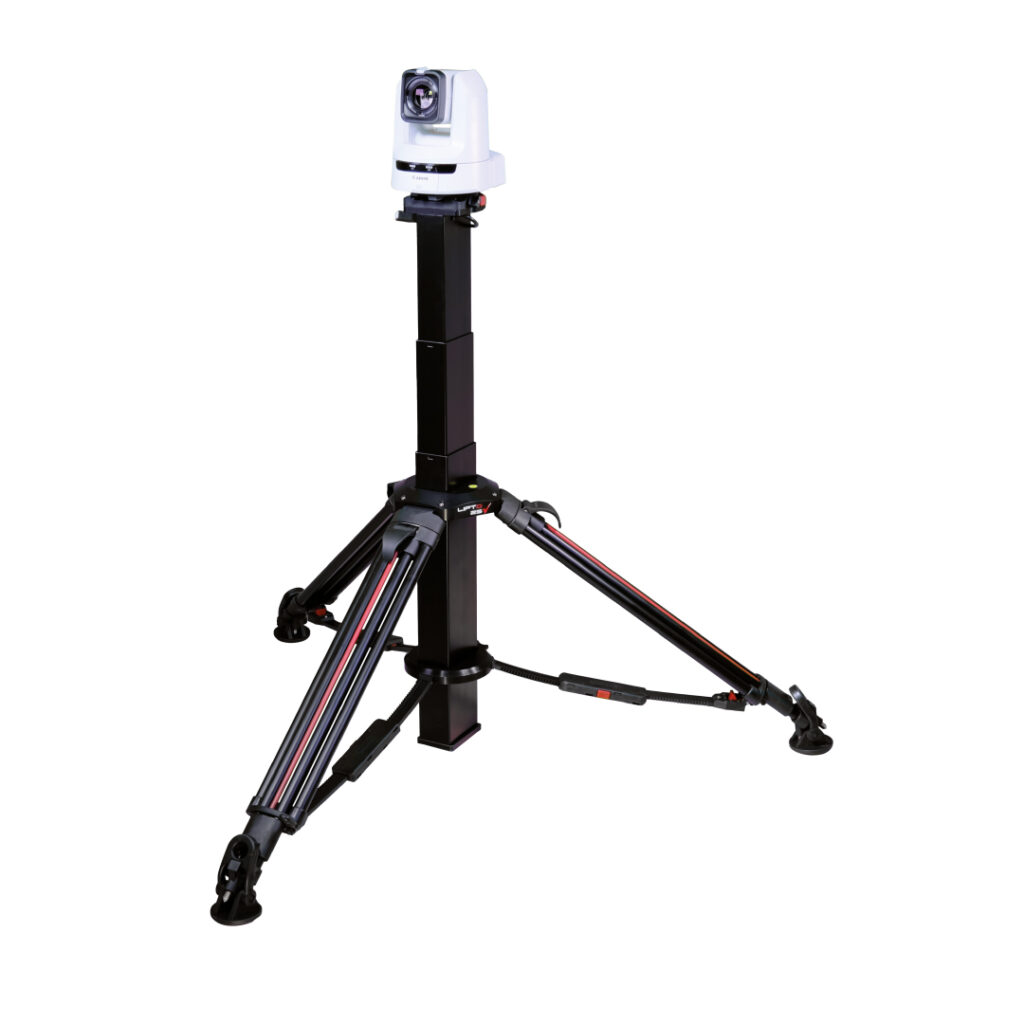

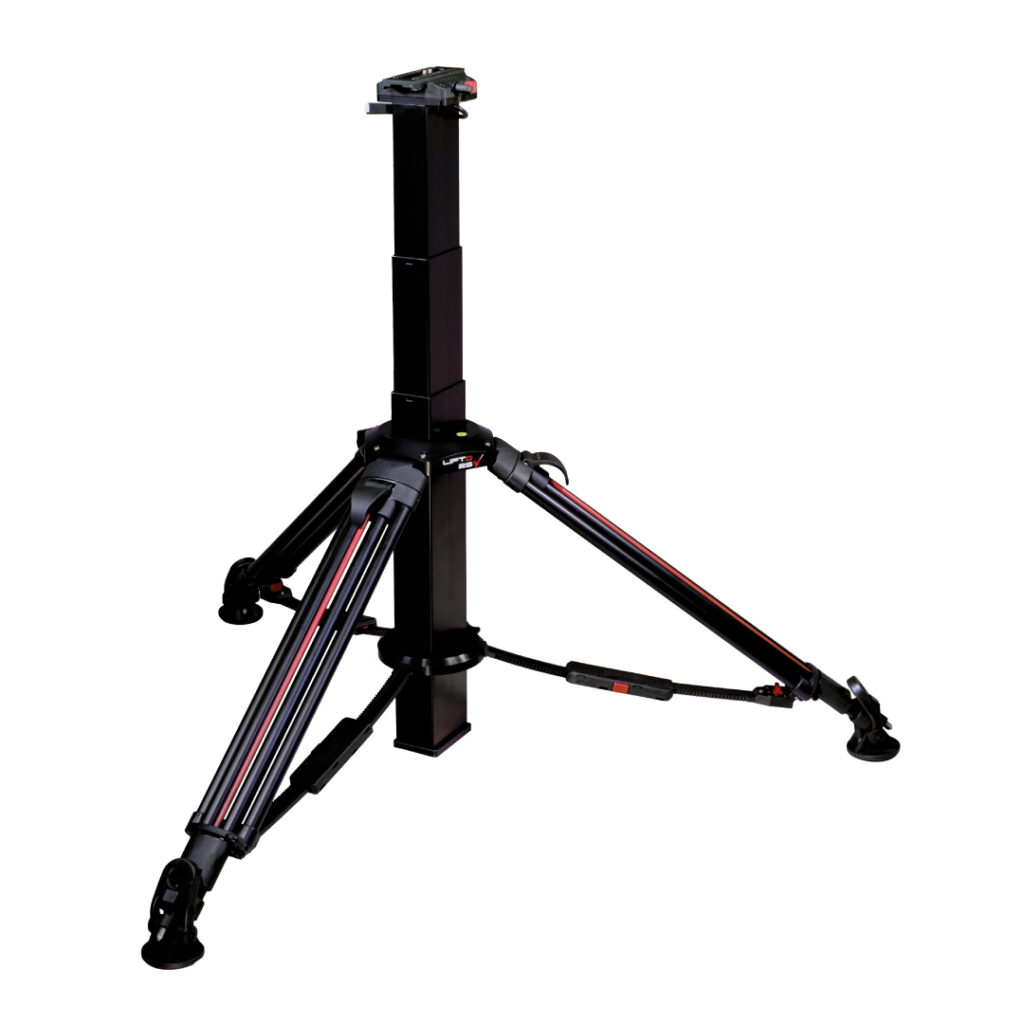

Cartoni Lifto 25 /S Pro Motorized Elevation Column with remote control unit, SDS tripod, smart lock spreader & rubber feet

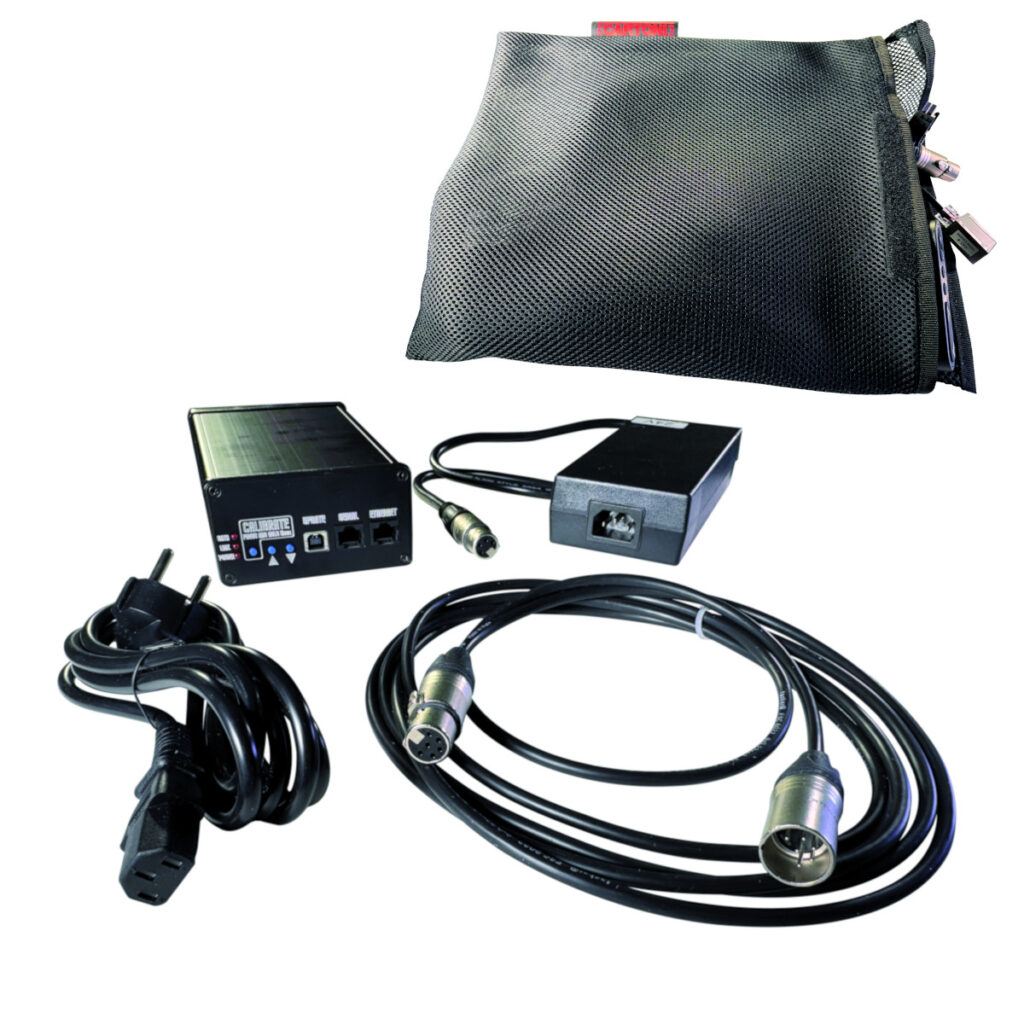

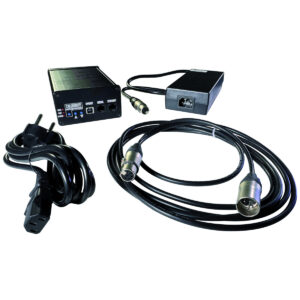

Whether at a live event, in a studio or house of worship, The Cartoni Lifto 25/S Pro with RX Box supports your vision. The Lifto 25/S Pro with RX Box brings smooth on-air quality movement utilizing the vertical high range as a natural shot. The Lifto 25/S Pro elevation unit is designed to work with most major PTZ Camera Controllers including Panasonic, Visca, Skaarhoj and Sony through a dedicated RX Box. Setting up in minutes, the Lifto 25/S Pro easily connects directly into the RX Box and through an ethernet cable to the camera controller for variable speed and preset positioning, while the joystick controls up/down movement.

The Lifto 25/S Pro can also be controlled /programmed indipendently through the optional KPTZ0205 TX box and foot pedals.

Broadcasters can use the Lifto 25/S Pro in the studio with a camera prompter. The patented Smart Deployment Series SDS tripod with Smart-Stop Mid-Level Spreader are engineered for great stability and rigidity. An optional dolly allows for quick movement around the studio and the optional T-bar will allow for multiple cameras. Cartoni Lifto 25/S Pro offers broadcast quality performance at a competitive price.

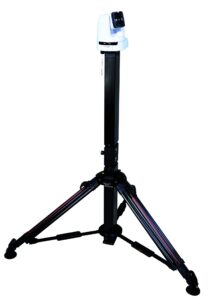

The Lifto 25/S Pro can be upgraded to Lifto 25/S Twin Pro with purchase of an additional APTZ009 Llifto Motorized Column

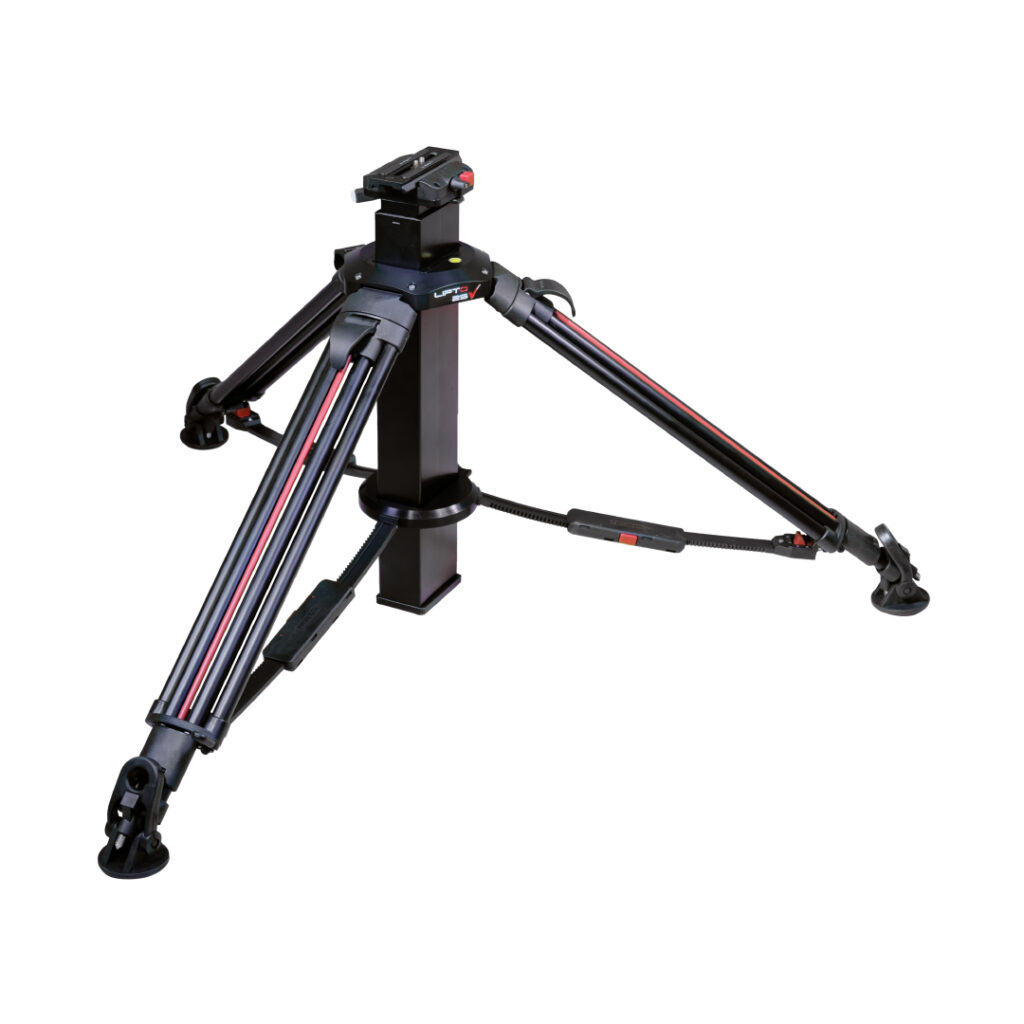

This Lifto 25/S Pro System comes equipped with a built-in spreader and rubber feet, a quick release camera attachment for PTZ cameras and a safety ring to secure the camera. It can be mounted on the Cartoni lightweight dolly for easy travelling on the studio floor.

The Lifto 25/S Pro unit will also pack into a compact high quality wheeled case for easy transportation, available to order as an accessory.

Features

• RX Box works with most major PTZ camera controllers
• Preset setting and variable speed control
• Ideal for studio and house of worship set ups.
• Easy to operate, fast and easy set up for on location shooting
• Silent and smooth motors for on-shot elevation movements up to241cm (95″)
• Add multiple camera with optional T-bar
• Smart deployment tripod for great torsional rigidity and fast set-up
• Compatible with additional column
• Compatible with Companion software

Recommended for:

• ILME-FR7K – Sony FR7
• PT30X-SDI-GY-G2 – PTZOptics 30X-SDI Gen 2
• 6022C011 – Canon CR-N700 4K
• 5157C002 – Canon CR-N300 4K (white)
• 4839C001 – Canon CR-N500 Professional 4K
• BDP4KBUNDLE-WWW – BirdDog P4K 4K Full NDI (white)
• BDP4KBUNDLE-BBB – BirdDog P4K 4K Full NDI (black)
• AW-UE160WPJ – Panasonic AW-UE160 UHD 4K (white)
• AW-UE160KPJ – Panasonic AW-UE160 UHD 4K (black)

Specs

• Weight 12.2 kg
• Capacity 25 kg
• Minimum Height 60 cm
• Maximum Height 254 cm
• Material Aluminum
• Dimensions φ 276 x 861 mm
• Speed 38 mm/s
• Column interface fixing method Safe release camera plate
• Stroke 660 mm
• Footprint diameter (minimum height) 1306 mm
• Input voltage 24 V
• Dual voltage power supply 100/240V 50/60Hz
• Maximum current consumption 9 A
• Operational temperature -10°C/+40C
