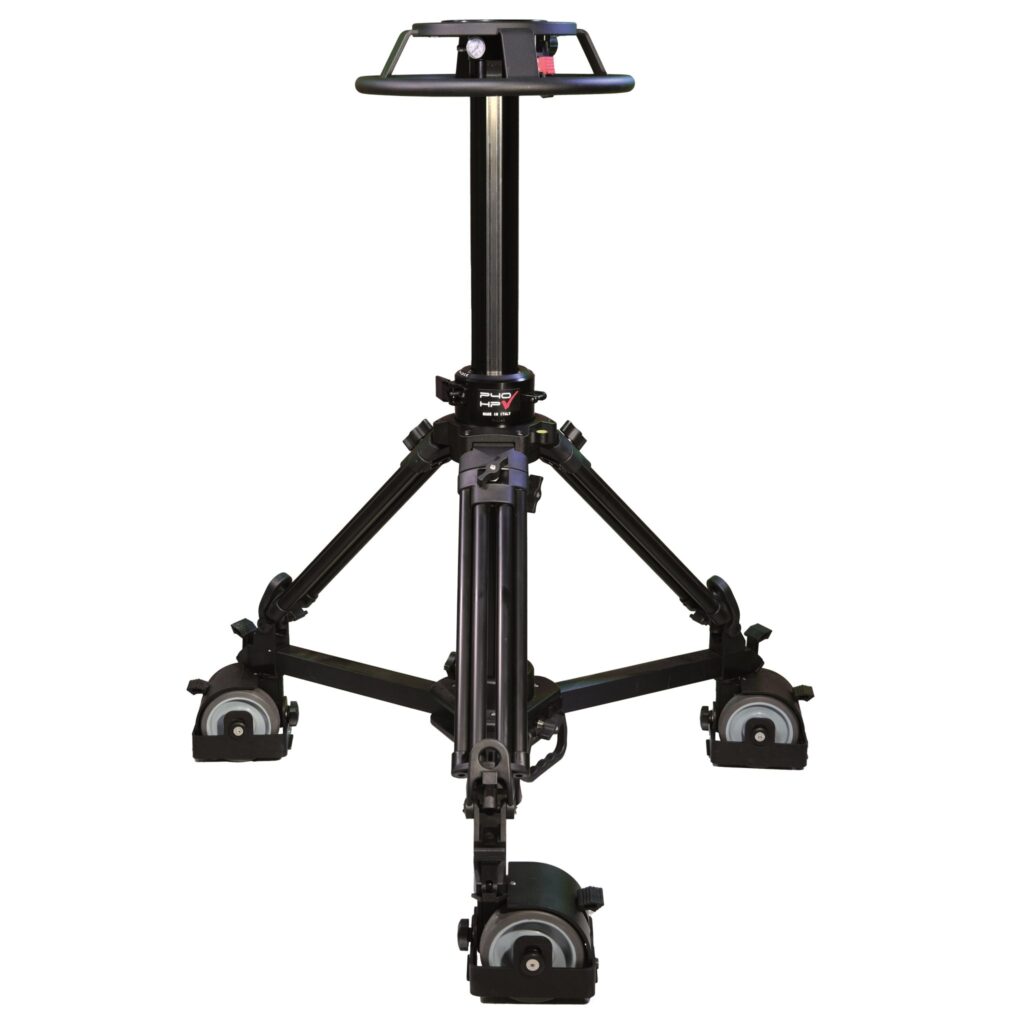

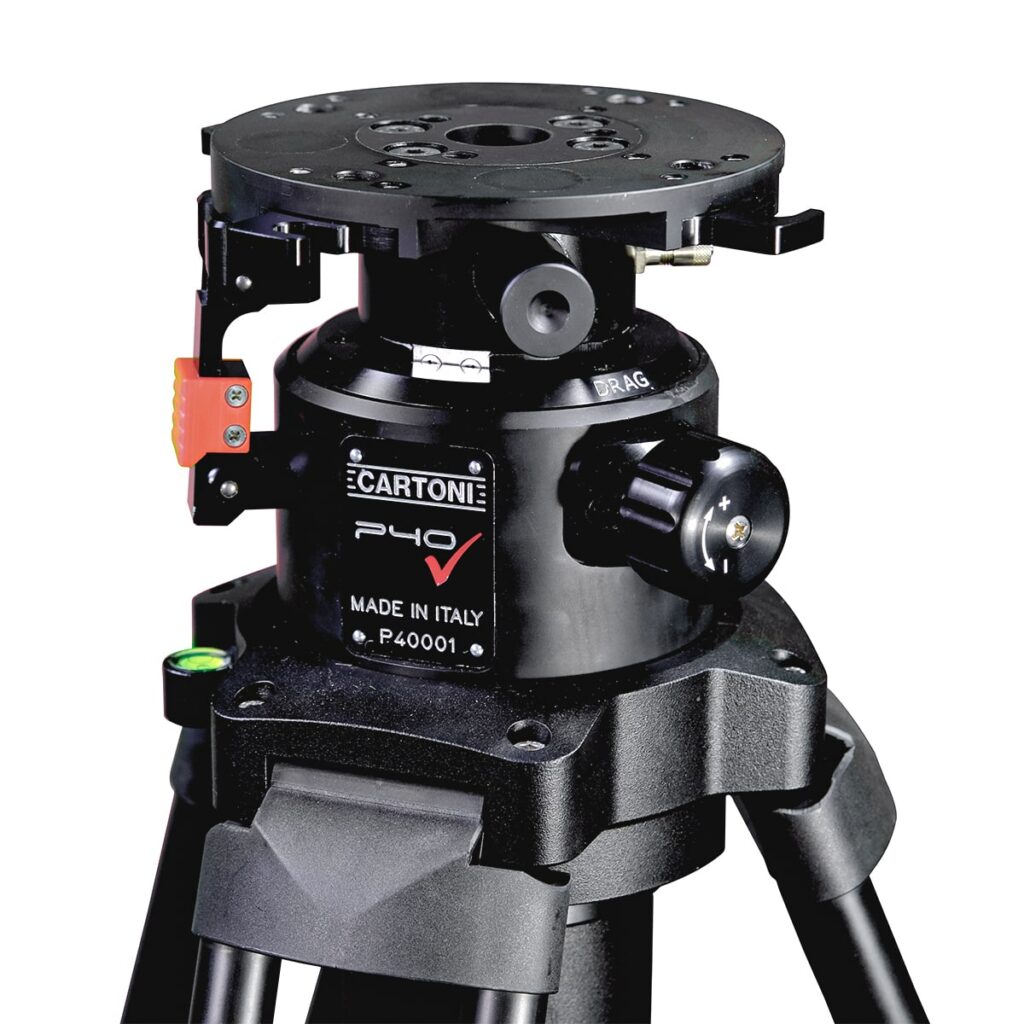

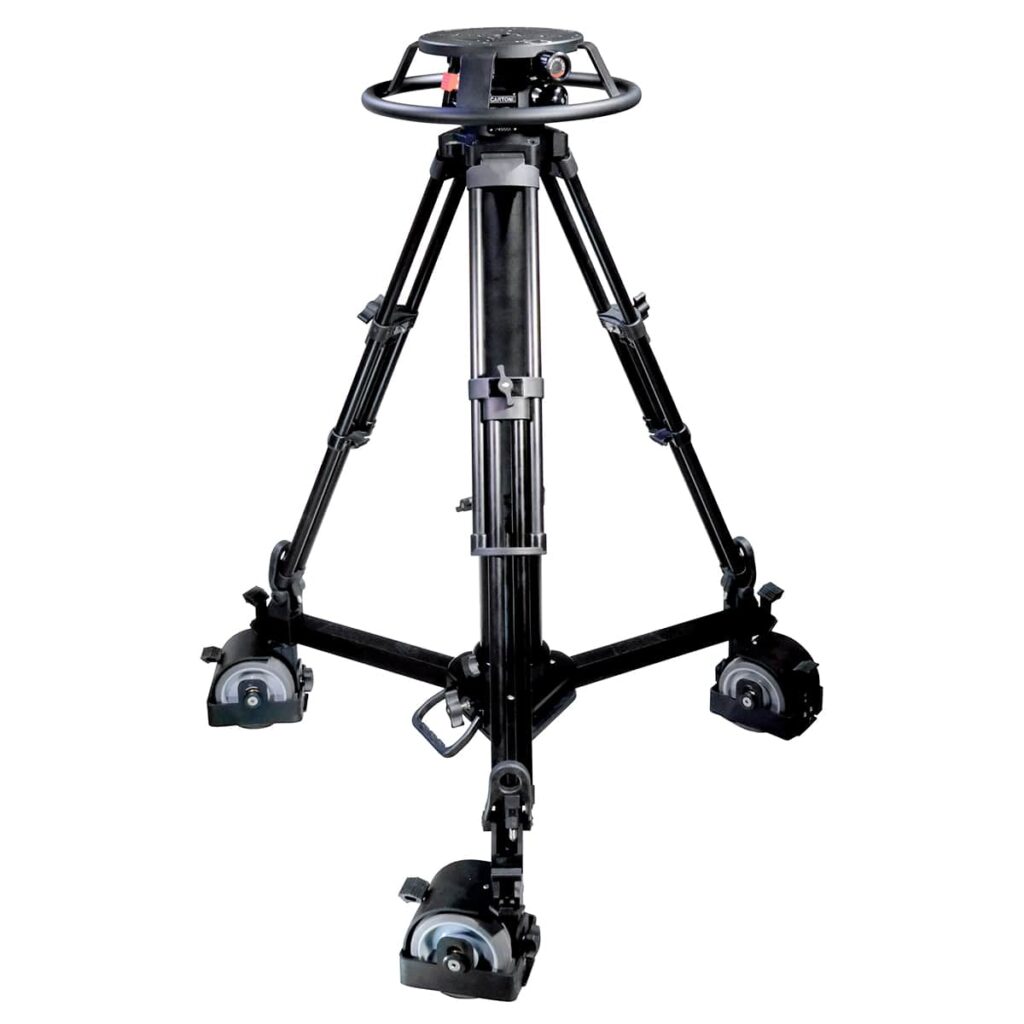

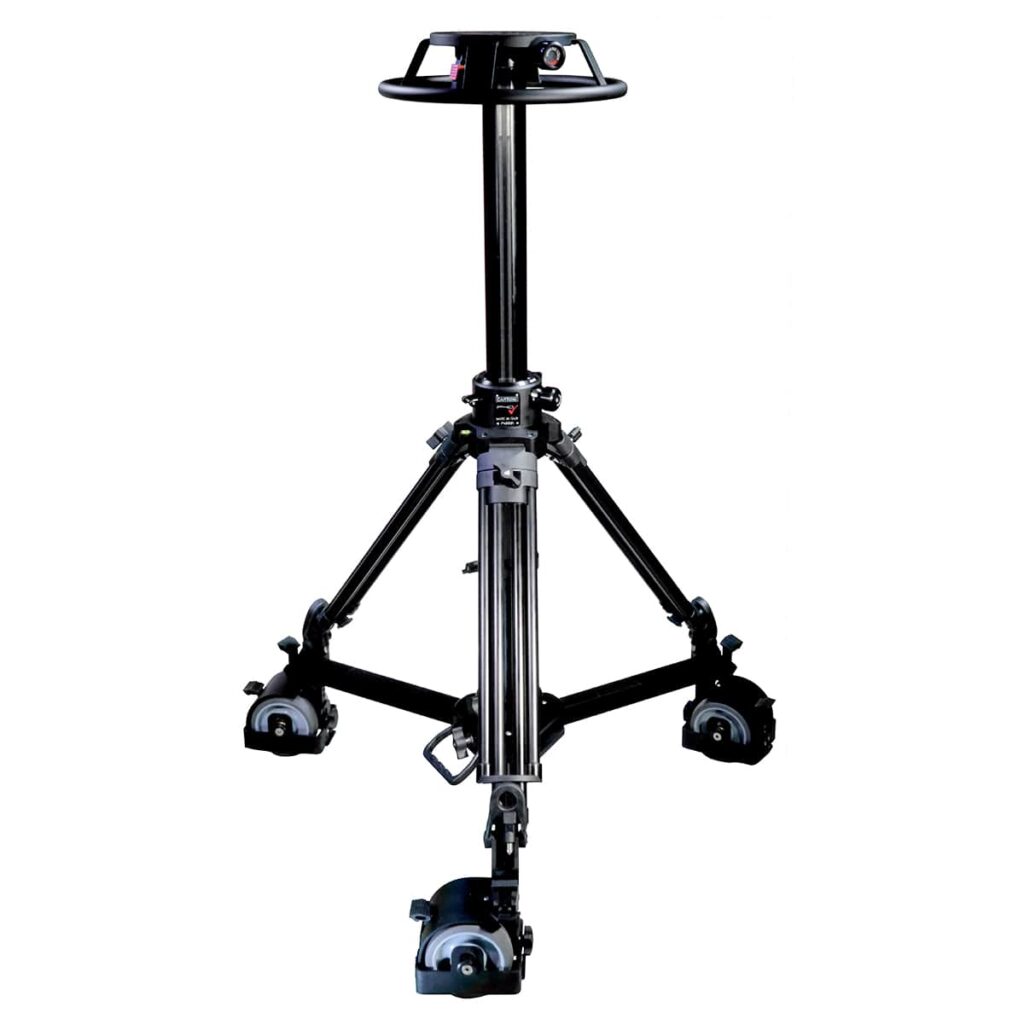

Pedestal P40 HP

Product

Combines perfect balance and on-shot movement for ob & lightweight studio environment, with payloads up to 45kg /100 lbs. This rugged yet lightweight two stage support with large height range, is ideal for newsrooms, sports or ptz configuration.

A pre-settable tripod extension with positive clamps allows to select the basic height and the pneumatic column ads on a variable on-shot stroke of 47cm (8 “).

The hexagonal shape guarantees smooth and precise vertical movements and includes an air pressure gauge, a locking brake and a safety air pressure valve.

Features three twin wheels (125mm diameter-4,92 in) lockable in six tracking positions plus a foot operated brake on each wheel & cable guards to provide smooth movements in any desired direction.

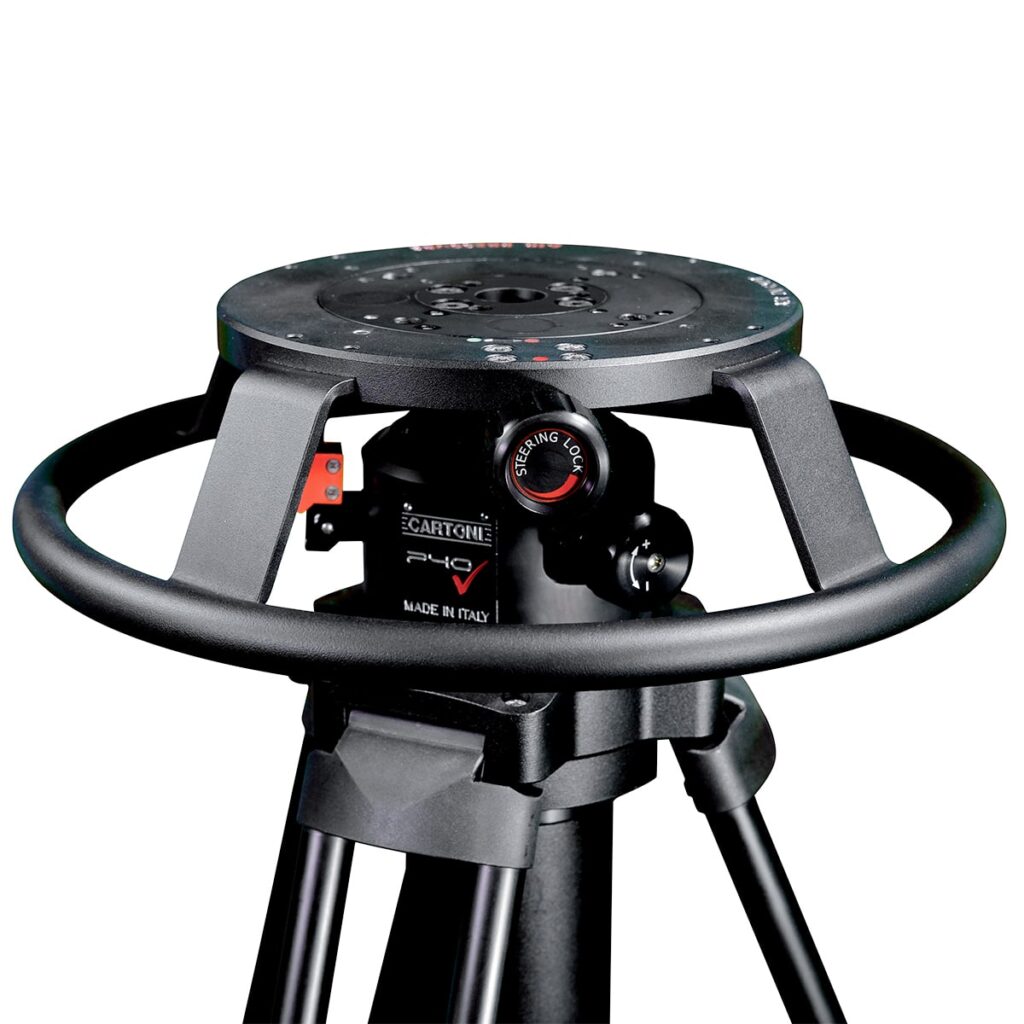

The P40 HP can be mounted on tracks of 620 mm pace with a skating wheel group. The air pressure inside the column can be set manually and adjusted to suit the exact weight of the head and camera configuration. It can be set up or disassembled fast and easy, the steering wheel has a fast lock attachment and the platform interfaces with a variety of optional head adapters.

Features

• Large operational height
• Sturdy foldable dolly
• Flexible mounting & easy set up
• Quality pneumatic on-shot movement
• Removable steering wheel

Specs

• Weight 23.2 kg
• Maximum Payload Capacity 45 kg
• Operational temperature -20° /+60° Celsius
• Maximum Pressure 10 atm/147 psi
• On-Shot Stroke 471mm
• Wheel Diameter 12.5 cm
• Minimum Height 71 cm
• Maximum Height 157 cm
• Doorway Tracking Width Minimum 75 cm
