Pedestal P70 HP

Product

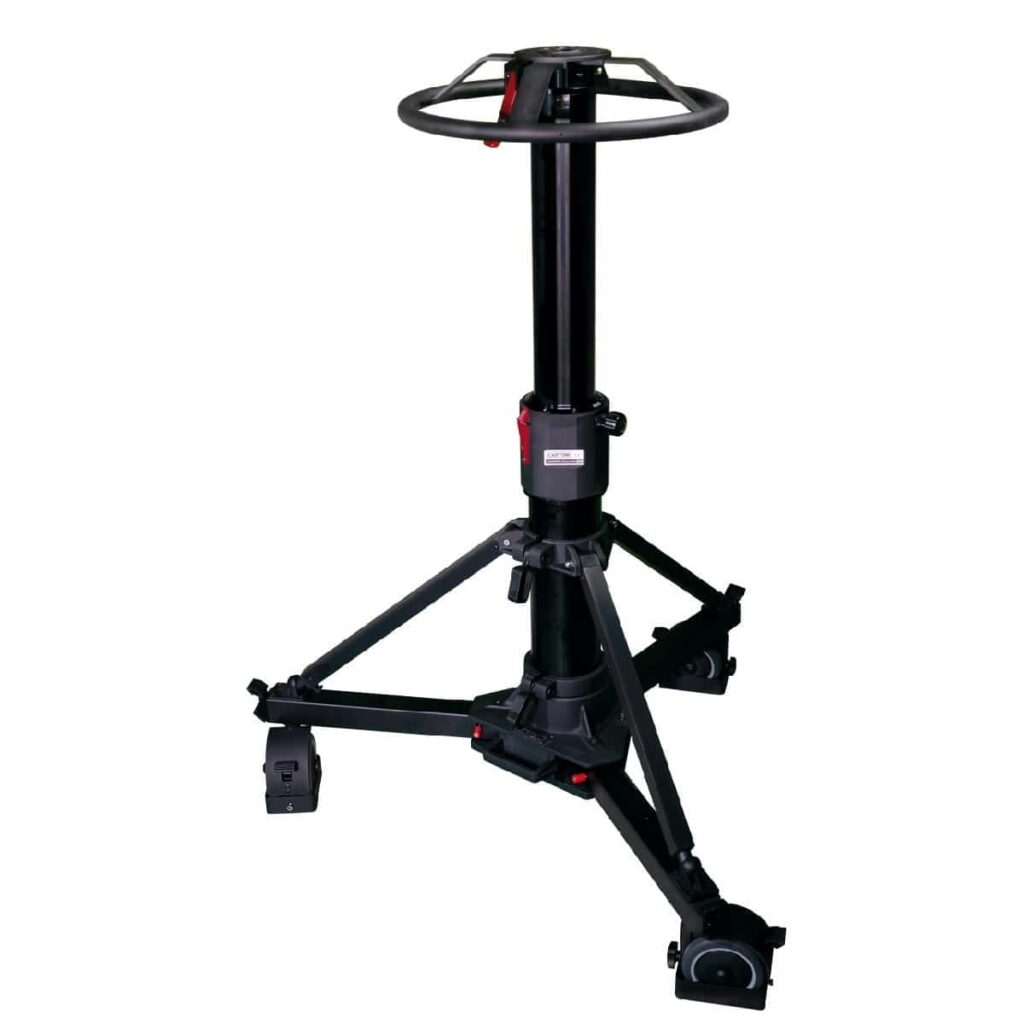

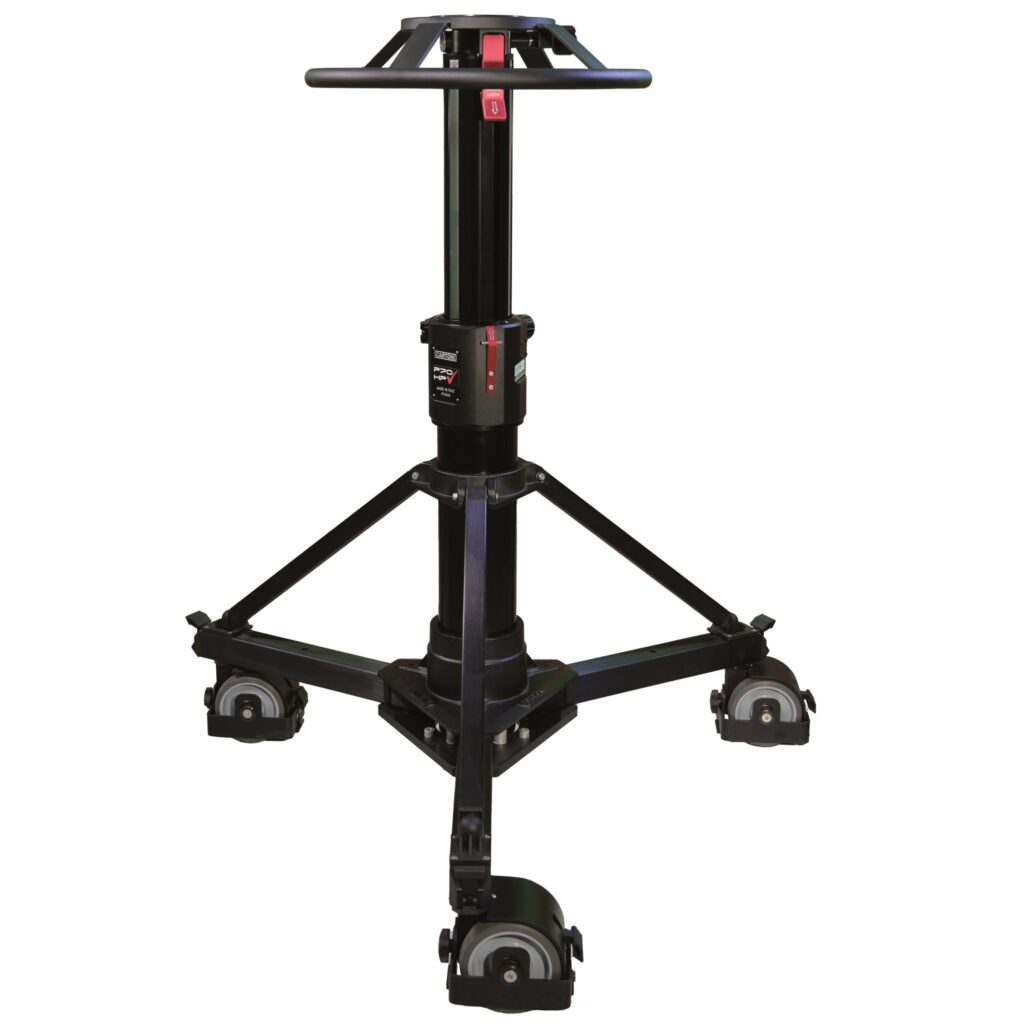

Cartoni P70 HP is a portable and compact two stages system for both Studio and OB applications.

Extremely stable yet lightweight, its ideal performance is reached with camera/lens combination of around 55 kg (121 lbs).

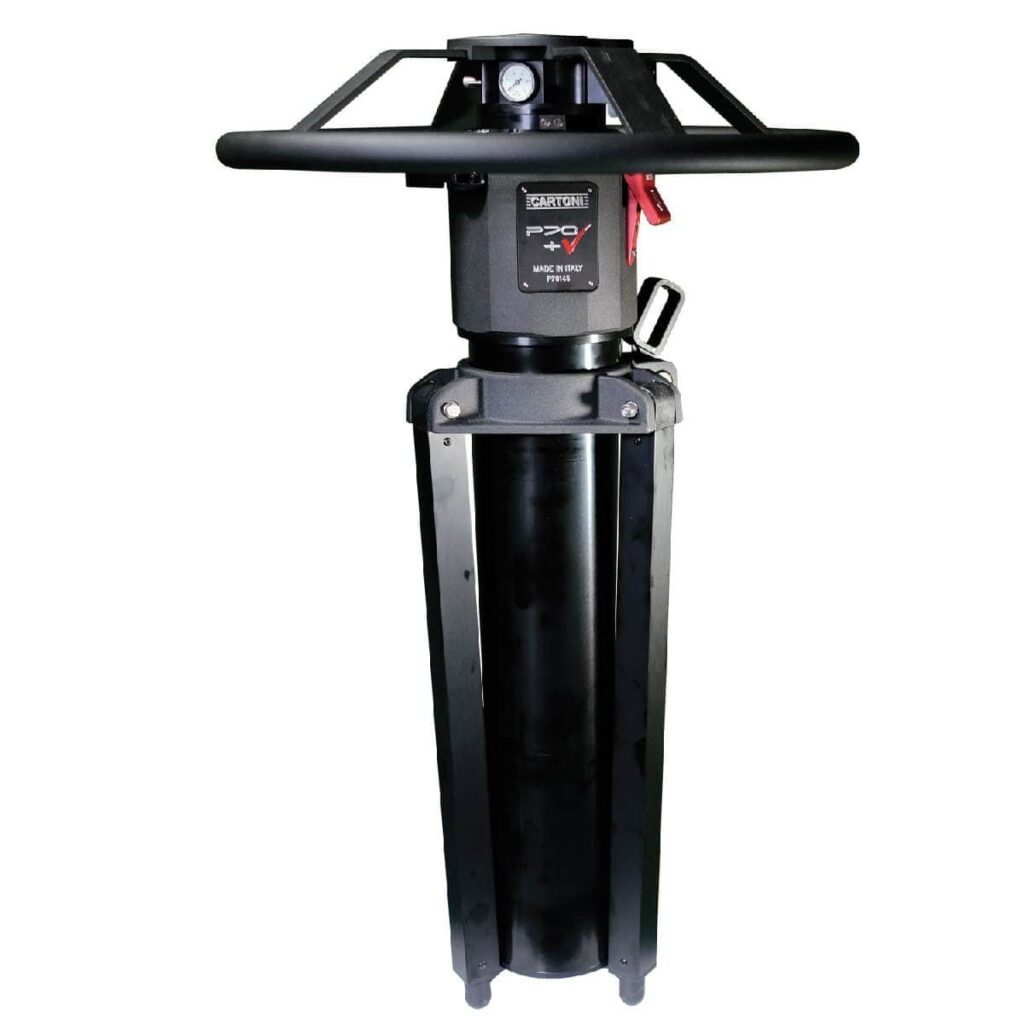

The air filled, one shot column is fast and safe to operate: the air can be set in manually or by compressor, and a safety air pressure valve prevents danger of over pumping.

The innovative column design provides outstanding stability end jerk-free control with exceptional smoothness and precise movements for a pneumatic on-shot stroke of 45 cm.

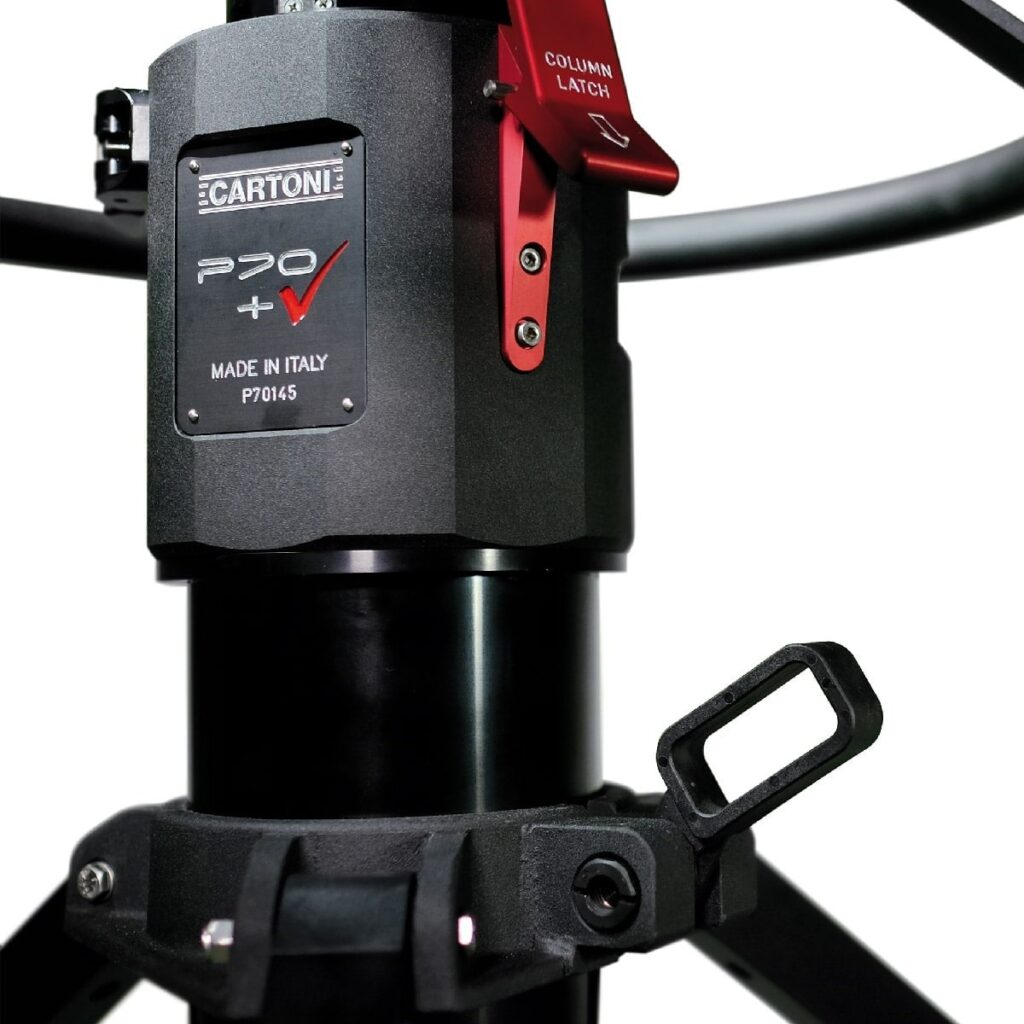

The column is firmly secured to the dolly by a double clamp, easily engaged by two ergonomic locking levers.

The basic column height can be pre-set manually and supports a maximum payload of 75 kg (165 lbs) at 125 psi.

Accurate camera balance is achieved by simply activating the bleed valve, releasing excess air pressure.

On the foldable dolly, six position track lock, foot operated brake on each of the 125 mm twin wheels and cable guards provide smooth movements in any desired direction.

A set of 200 mm pneumatic tires with wheel brakes are available for OB use.

With Pedestal Adapter (AH856) it accommodates all Flat Base heads

Features

• Compact & lightweight
• Adjustable first stage
• Quality on-shot movements on second pneumatic stage
• Perfect balance
• High precision traveling with wheel position locks
• Removable steering wheel

Specs

• Weight 28 kg
• Maximum Payload Capacity 75 kg
• Maximum Pressure 9 atm/132 psi
• On-Shot Stroke 50
• Capacity 75 kg
• Wheel Diameter 12.5 cm
• Minimum Height 75 cm
• Maximum Height 146 cm
• Doorway Tracking Width Minimum 88 cm
