RED
V-RAPTOR [X] JA V-RAPTOR XL [X]
RED julkisti uudet kamerat V-RAPTOR [X] ja V-RAPTOR XL [X]
RED Digital Cineman uusissa kameroissa on SMC3-järjestelmä RED Global Visionilla, global shutter -kenno ja työkaluja uuden joustavuuden ja dynaamisen alueen saavuttamiseksi.
Yksi mielenkiintoisimmista uusista ominaisuuksista on Extended Highlights, joka auttaa erottelemaan ja nostamaan värit sekä yksityiskohdat highlighteissa. Phantom Track -kaksoiskaappaustila mahdollistaa joustavuuden virtuaalisissa tuotantotyönkuluissa.
V-RAPTOR [X] Upgrade Program
RED mahdollistaa V-RAPTOR 8K VV- ja V-RAPTOR XL 8K VV -kameroiden päivityksen uuteen Global Shutter -kennoon. Voit lukea lisää päivittämisestä ja hinnoista alla olevasta linkistä.
RED KOMODO-X
RED KOMODO-X
Kamerassa on täysin uusi kennoteknologia. Uuden sukupolven Global Shutter -kennossa on päivitetty pikselimuotoilu ja parannuksia yksityiskohtiin sekä väreihin varjossa.
V-RAPTOR XL
V-RAPTOR XL
8K VV + 6K S35 kenno
V-RAPTOR XL -kamerassa on sisäänrakennettu elektroninen ND-filtterijärjestelmä, jota voi ohjata langattomasti.
Kamera on suunniteltu suurempia ja vaativampia tuotantoja varten, sillä siinä on mm. enemmän liitäntämahdollisuuksia kuin edeltäjissään, langaton synkkaus, parannetut fokus- ja etäohjausominaisuudet sekä kolmeasteinen jäähdytys.
V-RAPTOR XL – elektroninen ND-filtterijärjestelmä
V-Raptor Release Build 1.3.4 September 27, 2022
Important
- Download the latest REDCINE-X PRO from https://www.red.com/downloads
Upgrade V-Raptor Firmware
- 1. Copy the upgrade folder (containing the upgrade.bin file) to the top directory on the CFexpress card.
- 2. Power up the camera and insert a CFexpress card into the V-RAPTOR media slot.
- 3. Go to Menu > Maintenance > Upgrade and select OK.
- 4. The camera starts the upgrade process which will automatically restart the camera.
- 5. After the camera restarts to complete the upgrade process, select RESTART once it appears.
- 6. Go to Menu > System Settings > System Status > Camera Info to verify the firmware version after the camera boots.
Significant Changes Since Release 1.2.7
- Added ELQ R3D Quality
- Added RED CONNECT (BETA) – Full Resolution Live R3D Streaming (See Operational Notes Below)
- Added AF Improvements
- Added Quiet Record Fan Control
- Added DSMC3 Monitor through-camera firmware update support (Requires SmallHD OS5 or later)
- Added enhanced timecode behavior
- Added User calibration optimization reducing process from several minutes to approximately 30 seconds
- Added discrete monitor LUT support
- Added Basic, Standard and Technical overlay mode
- Added Tint to SDI Advanced Overlay
- Added Overlay Opacity control
- Added voltage display for non-communicating batteries
- Added Low Voltage Warning control
- Added QR code support for Wi-Fi passwords
- Added RCP2 external lens data support
- Added ’Auto’ to Top LCD Resolution menu
- Added RED PRO 1.3TB and 4TB support
- Added Angelbird AV PRO MK2 660GB, 1320GB, 2TB and 4TB support
- Added Exascend Archon 2TB CFx support
- Added ProGrade 325GB and 650GB support
- Fixed custom preset disappearing when assigned to user page
- Fixed unintended RF lens motor movement in manual mode
- Fixed Sigma Cine lens communication issue
- Fixed incorrectly displayed minimum lens F stop
- Fixed incorrect scrolling text
- Fixed issue with Sensor Flip calibration
- Fixed horizontal tear in 4K 8:1 at HFR
- Fixed horizontal tear in Flip/Mirror mode
- Fixed ’low speed’ message with SanDisk CFx card
- Fixed refresh of LUT menu after import or delete
- Fixed slow/stalled playback of long clip
- Fixed EF lens detection on startup in AF mode
- Fixed CFx Time Indicator on startup
- Fixed Livestream freeze after disabling
- Fixed no static IP after reboot
- Changed PPP Baud Rate and IP Address string in UI
- Changed user calibration dialog to include time estimate
- Removed BETA from Autofocus feature
- Improved SDI Latency
Operational Notes
- RED CONNECT is a license enabled feature, for more info see https://support.red.com/hc/en-us/articles/7391709361683
- Calibration must be performed in Sensor Flip mode.
- Some devices may experience intermittent connection issue over USB-C tethering.
- Warning message will occur with unapproved Media and Batteries.
Copyright (c) 2004-2022 RED Digital Cinema, LLC. All Rights Reserved.
SENSOR SPECS | |
SENSOR TYPE | V-RAPTOR™ 8K VV 35.4 Megapixel CMOS |
EFFECTIVE PIXELS | 8192 × 4320 |
SENSOR SIZE | 40.96 mm x 21.60 mm (Diagonal: 46.31 mm) |
DYNAMIC RANGE | 17+ stops |
KEY FEATURES | |
BUILT-IN ND | Motorized clear filter and precision controlled electronic ND filter Electronic ND minimum density 2 stops, maximum density 7 stops Electronic ND selectable increments of 1/3 stops, 1/4 stops, and 1 stop |
MOUNT TYPE | Interchangeable lens mount, included V-RAPTOR XL PL Mount (shimmable) Optional V-RAPTOR XL Locking Canon EF Mount Physically compatible with DSMC Lens Mounts, but does not provide electronic communication or control |
BATTERY TYPE | Integrated Dual Voltage 14/26V V-Lock battery interface | Integrated Dual Voltage 14/26V Gold Mount battery interface |
RECORDING | |
MAX DATA RATES | Up to 800 MB/s using RED branded or other qualified CFexpress media cards1 |
REDCODE® RAW MAX FRAME RATES | 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456) 140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024) 160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592) 192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160) 240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728) 320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296) 480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864) |
PLAYBACK FRAME RATES (PROJECT TIME BASE) | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions |
BEST AVAILABLE REDCODE® SETTINGS | REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps |
REDCODE® RAW ACQUISITION FORMATS | 8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x 7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x 5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1 4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1 3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1 2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1 |
APPLE PRORES | Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096×2160) Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) |
GENERAL | |
CONSTRUCTION | Aluminum Alloy |
WEIGHT | 7.99lbs (with PL Mount, V-Lock) 8.08lbs (with PL Mount, Gold Mount) |
DC POWER INPUT | 19.5-34 V via 4-pin 2B DC-IN |
OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
STORAGE TEMPERATURE | -20°C to 50°C (-4°F to 122°F) |
RELATIVE HUMIDITY | 0% to 85% non-condensing |
ADDITIONAL FEATURES | |
COLOR MANAGEMENT | Image Processing Pipeline 2 (IPP2) Supports 33×33×33 3D LUTs Supports import of CDLs |
AUDIO | Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz |
AUTOFOCUS | Contrast and Phase Detect |
REMOTE CONTROL | Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload |
POWER OUTPUTS2 | Regulated 12 V Outputs 2x P-TAP Connectors (3AMP Combined) 1x Rear 2-Pin 0B (3 AMP) 1x Rear 2-Pin 0B (1.5 AMP) 1x Front 2-Pin 0B (1 AMP) Regulated 24 V Connectors 2x Front 3-Pin Fischer (3 AMP Combined) |
MONITOR OUTPUTS | Proprietary top accessory port for monitoring and control 3x 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes (SDI 1/2/3) 1x 3G-SDI with 3G-SDI and 1.5G-SDI modes (EVF) 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio |
MONITOR OPTIONS | DSMC3 RED® Touch 7.0” LCD IP streamed 1080p live preview wirelessly or wired via USB-C or Ethernet Integrated 2.4″ LCD for camera control (no preview video) |
CAMERA SYNC OPTIONS | Tri-Level Genlock through BNC Linear Timecode (LTC) through 5-Pin 0B PTP through 9-Pin 0B GIG-E Wireless Genlock and Timecode through Integrated Ambient Communication Network (ACN) |
SOFTWARE | |
RED CONTROL | Access full camera controls and live preview from iOS or Android devices Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C or Ethernet |
V-RAPTOR XL verkkokaupassa
KAMERAVERTAILU
Vertaile RED-kameroita
Komodon, V-Raptorin ja V-Raptor XL:n kamerajärjestelmät vertailussa.
RED KOMODO 6K
RED KOMODO 6K
RED KOMODO 6K on pieni elokuvakamera, jossa on REDin vertaansa vailla oleva kuvanlaatu, väriteknologia ja uraauurtava global shutter -teknologia. Kamera on erittäin pieni ja monipuolinen.
KOMODOssa on korkearesoluutioinen kosketusnäyttö, josta on helppoa tarkastella materiaalia ja navigoida valikossa.
Kameran sensori on KOMODO® 19.9 MP Super 35mm Global Shutter CMOS.
SENSOR TYPE
KOMODO® 19.9 MP Super 35mm Global Shutter CMOS
EFFECTIVE PIXELS
6144 x 3240
SENSOR SIZE
27.03 mm x 14.26 mm (Diagonal: 30.56mm)
DYNAMIC RANGE
16+ stops
MOUNT TYPE
RF mount
Accepts Canon RF Mount Based Lenses and Adapters.
Supports Canon EF with full electronic communication via compatible Canon RF Mount Adapters.
MAX DATA RATES
Up to 280 MB/s using RED Pro CFast or other qualified CFast 2.0 media cards
REDCODE® RAW MAX FRAME RATES
40 fps at 6K 17:9 (6144 x 3240)
50 fps at 6K 2.4:1 (6144 x 2592)
48 fps at 5K 17:9 (5120 x 2700)
60 fps at 4K 17:9 (4096 x 2160)
120 fps at 2K 17:9 (2048 x 1080)
PLAYBACK FRAME RATES (PROJECT TIME BASE)
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
AVAILABLE REDCODE® SETTINGS REDCODE
HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 40 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 60 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 120 fps
REDCODE® RAW
ACQUISITION FORMATS
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700)
4K 17:9 (4096 x 2160) and 16:9
2K 17:9 (2048 x 1080)
APPLE PRORES 4K
(4096 × 2160) at ProRes 422 HQ and ProRes 422 up to 60 fps
2K (2048 × 1080) at ProRes 422 HQ and ProRes 422 up to 120 fps
CONSTRUCTION Aluminum Alloy
WEIGHT 2.10 lbs (without body cap and Cfast card)
BATTERY TYPE
Two slots for BP-9XX series batteries
DC POWER INPUT +7 to +17 V DC via the integrated 2-pin DC-IN port
Operating Temperature 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE
–20°C to 50°C (–4°F to 122°F)
STORAGE RELATIVE HUMIDITY
0% to 85% non-condensing
COLOR MANAGEMET
Image Processing Pipeline (IPP2)
Supports 33×33×33 3D LUTs
Supports import of CDLs
AUDIO
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Additional dual channel via integrated 3.5mm audio jack, uncompressed, 24-bit 48 kHz
REMOTE CONTROL
WiFi for camera control via interchangeable antenna with SMA connection
Genlock, Timecode-in, GPIO and Ctrl (RS232) via the integrated 9-pin EXT Port
Wired control via KOMODO Link Adaptor, using USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing camera control and live MJPEG preview video feed.
MONITOR OUTPUTS
Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
SMPTE
Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS
Integrated 2.9″ 1440×1440 touchscreen LCD with preview and camera control
Wireless live preview video feed via 2.4Ghz/5Ghz WiFi for framing.
RED CONTRO
Access full camera controls and live preview from iOS or Android(coming soon) devices.
Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via the KOMODO Link Adaptor (sold separately).

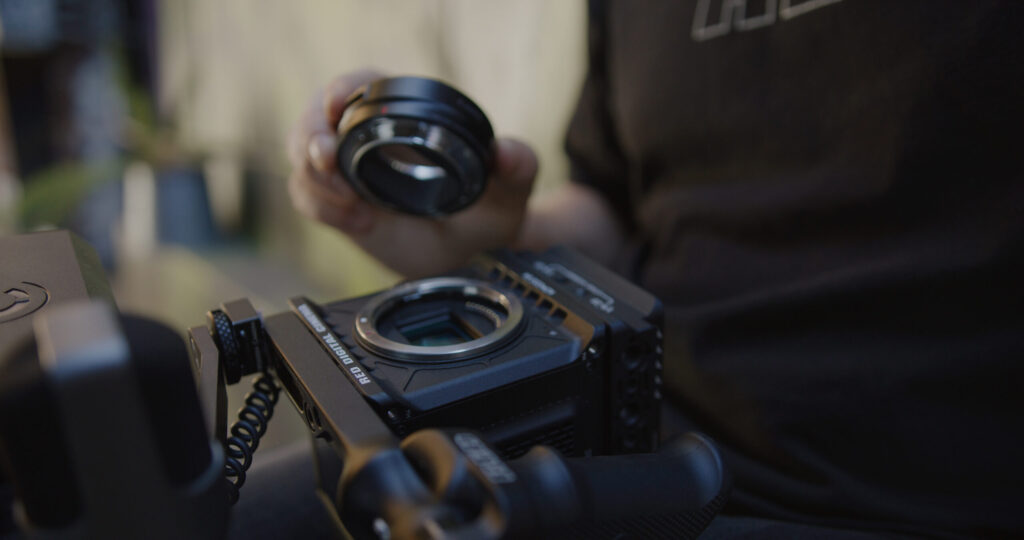

RF-kiinnitys
KOMODOssa on sisäänrakennettu Canon RF -mountti, jonka avulla käyttäjät voivat käyttää useita erilaisia objektiiviadaptereita, kuten Canon EF-, PL- ja Leica M.
Tämä tarjoaa suurta joustavuutta haluamasi lookin saavuttamiseksi.
DC IN ja BP-akut
KOMODOssa on DC IN -portti. Kameraa voidaan myös käyttää kahdella Canon BP -tyylisellä akulla BP955 (4900mAh) tai BP975 (7350mAh).
V-RAPTOR 8K
V-RAPTOR 8K
RED V-Raptor 8K VV on DSMC³-sukupolven ensimmäinen kamera.
Kamerassa on laajempi dynaaminen alue, kuin missään aiemmassa REDin kamerassa. Sillä on kestävä ja kompakti rakenne. Integroitu näyttö muokattavilla painikevalinnoilla helpottaa navigoimista valikossa.
Sensor Type
V-RAPTOR™ 8K VV 35.4 Megapixel CMOS
Effective Pixels
8192 × 4320
Sensor Size
40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
Dynamic Range
17+ stops
Mount Type
Integrated RF mount with RF lens support
Supports Canon EF lenses via compatible Canon RF to EF mount adapters
Accepts other Canon RF mount-based lens adaptors for diverse lens choices
Max Data Rates
Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1]
REDCODE® RAW MAX FRAME RATES
120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
AVAILABLE REDCODE® SETTINGS
REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
REDCODE® RAW ACQUISITION FORMATS
8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
Construction
Aluminum Alloy
Weight
4.03 lbs (without body cap and CFexpress card)
Dimensions
6″ x 4.25″ x 4.25″ (L x W x H)
BATTERY TYPE
Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1]
DC POWER INPUT
11-17V via 6-pin DC-IN
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
–20°C to 50°C (–4°F to 122°F)
Relative Humidity
0% to 85% non-condensing
Color Management
Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import of CDLs
Audio
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz
Remote Control
Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter required) allowing remote camera control, live MJPEG preview video feed and remote media offload
Monitor Outputs
Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
Monitor Options
DSMC3 RED® Touch 7.0” LCD
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
Integrated 2.4″ LCD for camera control (no preview video)
RED Control
Access full camera controls and live preview from iOS or Android devices
Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C
Ohjaus
V-RAPTOR on ohjattavissa etänä langattomalla yhteydellä RED Control -sovelluksella. joka on saatavilla iOS- ja Android-laitteille. Sovelluksen avulla pystyy myös esikatselemaan materiaaleja ja tekemään salattuja FTPS tiedostonsiirtoja.
Lisäksi ohjaus tapahtuu Wifin sekä USB-C-käyttöliittymän kautta.
Kenno
V-RAPTORin kenno on aivan uusi multiformat V-RAPTOR™ 8K VV 35.4 Megapixel CMOS.
RED lupaa kuvalle vertaansa vailla olevaa laatua hämäräkuvaukseen.
KYSY LISÄÄ
Kysy meiltä lisää
Mirva Valkeapää
Production Equipment Specialist
Työskentelen Mediatradella tuotantovälineiden ja testailun parissa. Olen tehnyt töitä erilaisissa AV-alan tehtävissä, nykyisin painottuen kameroihin.
OsaamisalueetJälkituotanto, Kuvaus, Valaisu
+358201557727
mirva.valkeapaa@mediatrade.fi
