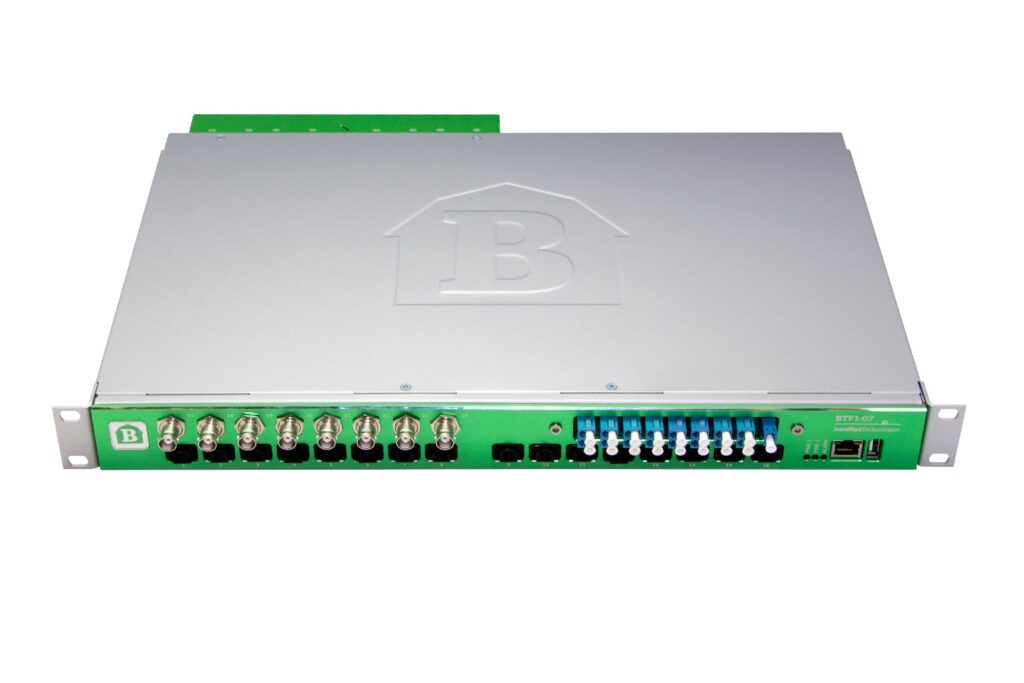

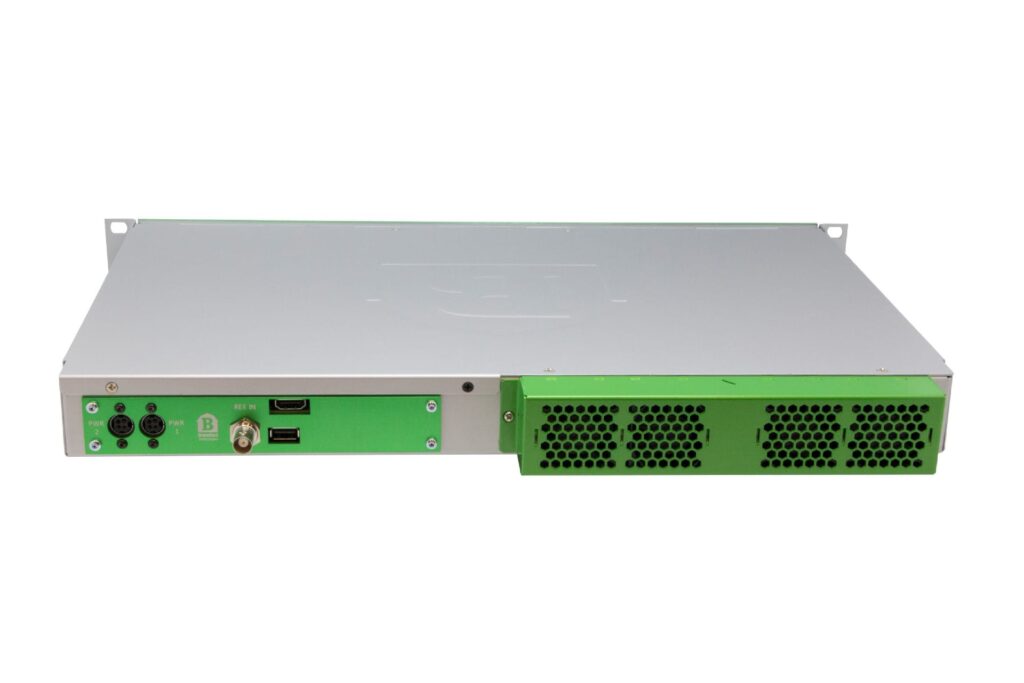

BarnOne BTF1-07-08 – ex-demo

Product information

16xSFP ports, 8 BNC & 8 ch. CWDM mux/de-mux

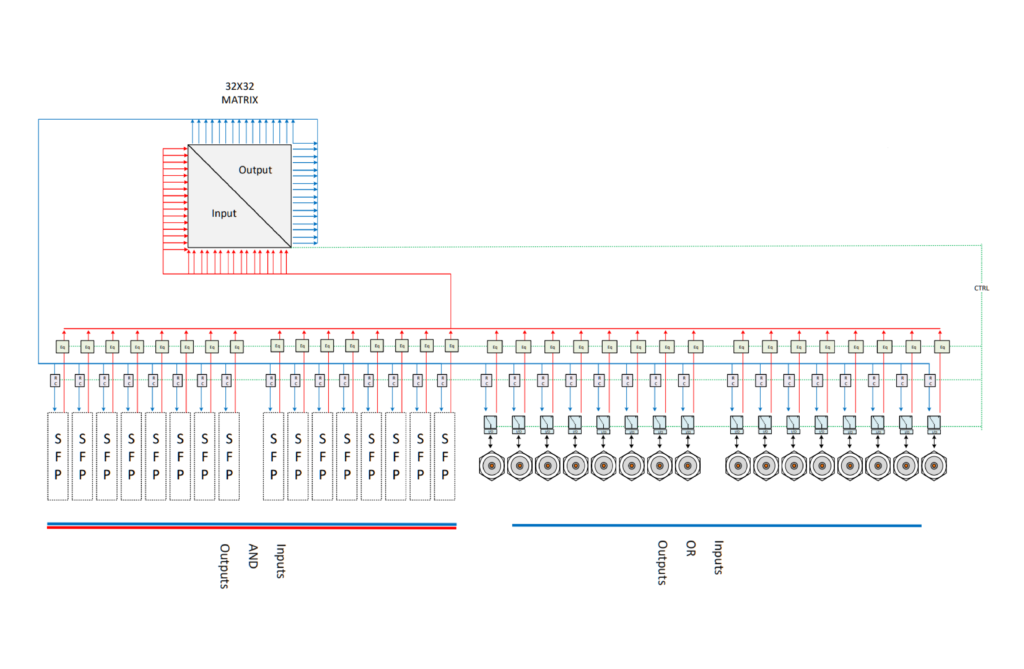

Designed to be the most flexible, rack-space saving and affordable infrastructure platform in the audio, video and communication businesses. Highly compact and equipped with an up to 32×32 cross-point router. Barnfind offer a number of configurations to combine BNC, SFP and CWDM fiber optical multiplexing.

This BarnOne frame accept SFPs following the MSA standard – this includes optical, SDI copper, HDMI and RJ-45 Ethernet style SFP modules.

Includes selection of CWDM SFPs.

Product has been in demo use. No warranty.

Specifications

Electrical ports
• 8x bi-directional BNC ports
• 75 OHM BNC connector
• SMPTE 259M, 292M, 372M, 424M, DVB-ASI
• Multirate reclocking of outputs 270Mbps – 3Gbps
• Automatic cable EQ (Belden 1694A) 270Mbps-250m, 1.5Gbps-140m, 3Gbps-80m

SFP ports
• 16x SFP ports (small formfactor pluggable) for transceivers, MSA compliant, up to 3Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules
• Multirate reclocking of outputs 270Mbps – 3Gbps

CWDM Mux & Demux
• 8 optical channels
• Center wavelengths according to ITU-T G.694.2
• Channel center wavelength 1290~1590 nm
• Channel clear passband ITU +/- 7 nm
• Insertion loss 8ch-2.5dBm, 16ch-3.5dBm (max)
• Passband ripple 0.5dBm (max)
• Adjacent channel isolation 30dBm (min)
• Non-adjacent channel isolation 45dBm (min)
• Return loss 45dBm (min)
• Directivity 45dBm (min)
• Polarization dependent loss 0.1dBm (max)
• Operating temperature range -20C to +70C (optional -40C to +85C)
• Storage temperature handling – 40 to + 85C
• Maximum power handling 300mW
