FreeSpeak II Transceiver Splitter

Product

The FSII-SPL is a splitter that connects multiple FreeSpeak II transceiver antennas to an Eclipse® HX matrix (via E-QUE-HX card) or a FreeSpeak II base station. The splitter provides up to five antenna feeds from one antenna port and has an SFP fiber slot for fiber connectivity.

Features

• Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX cards
• Provides 5 FSII transceiver feeds on one port on FSII base station or E-IPA-HX card
• SFP fiber slot for fiber link to FSII base station or as a fiber bridge between FSII-BASE-II stations and Eclipse HX frames
• Supports both multi-mode and single-mode fiber
• Configure settings using DIP switches
• IP-63 water resistance for outdoor use

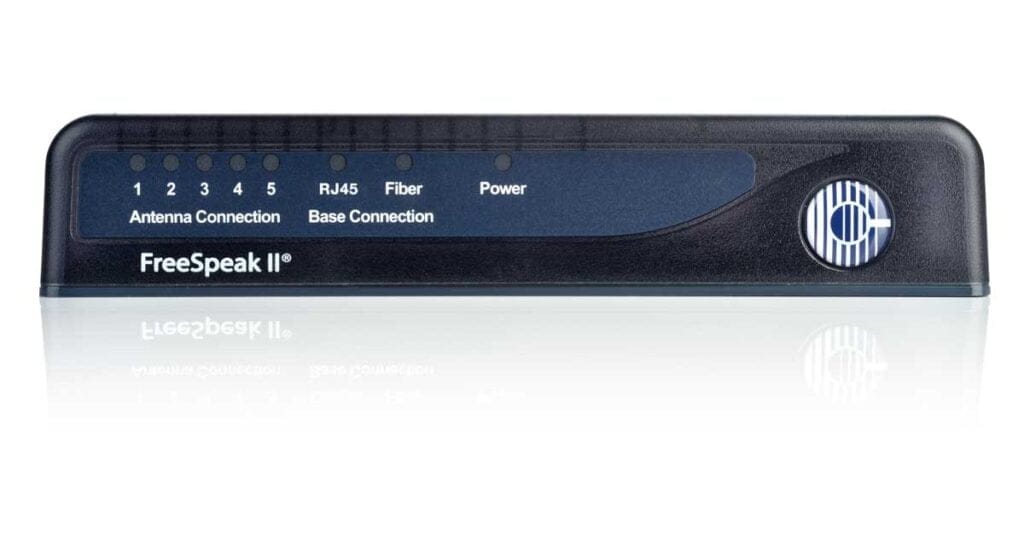

• LED status indicator on front and back
• Mic stand or wall mount orientation (metric and imperial threads)
