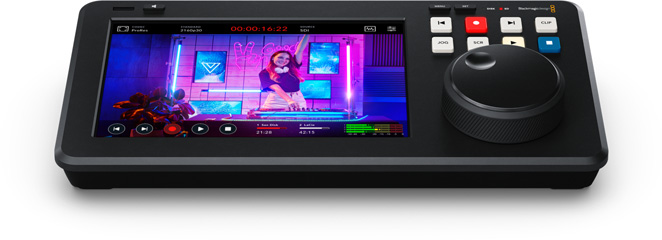

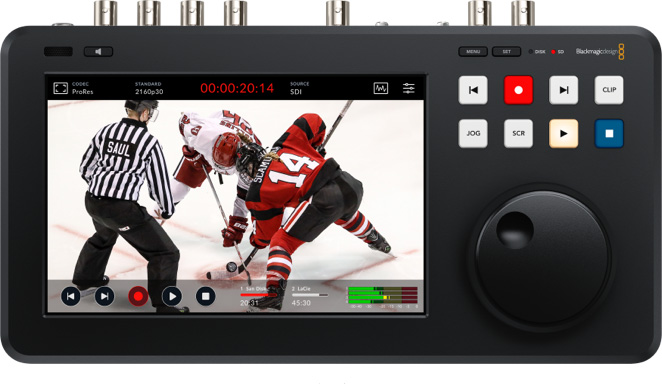

HyperDeck Shuttle 4K Pro

HyperDeck Shuttle 4K Pro

HyperDeck Shuttle 4K Pro is an advanced recorder and player with a large 7″ LCD touchscreen for monitoring and scopes. The large search dial and broadcast controls are perfect for scrolling through media to find the media you want to play. 12G-SDI connections allow you to connect to professional broadcast equipment. Supports HDMI 4K, H.264, H.265, ProRes or DNx files, HD proxies, scopes, 3D LUT and network recording via fast 10G Ethernet.

Ominaisuudet

• SDI Video Inputs: 1
• SDI Loop Outputs: 1
• SDI Video Outputs: 2
• SDI Monitor Outputs: 1
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
• HDMI 2.0 Video Inputs: 1
• HDMI 2.0 Video Outputs: 1
• HDMI Monitor Outputs :1
• Built in Speaker: Mono
• Audio Output: 1 x 6.35 mm headphone jack
• Screen: 7 inch LCD.
• Reference Input: 1 x BNC In,Tri-Sync/Black Burst and Timecode.
• Reference Output: 1 x BNC Out.Tri-Sync or Black Burst.
• SDI Audio Inputs: 64 channels embedded audio.
• SDI Audio Outputs: 64 channels embedded audio.
• HDMI Audio Inputs: 8 channels embedded audio.
• HDMI Audio Outputs: 8 channels embedded audio.
• Remote Control: 1 x RS-422 In.
• Recorder Configuration: Via user interface on HDMI Out orBlackmagic HyperDeck Ethernet Protocol.
• Ethernet: 1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T.
• External Recording: 1 x USB-C 3.1 Gen 1 (up to 5Gb/s) for external disk recording.
• Computer Interface: 1 x USB-C for software updates.

Paketissa

• HyperDeck Shuttle 4K Pro
• 12V universal power supply with international socket adapters
