UpDownCross 100G

UpDownCross 100G

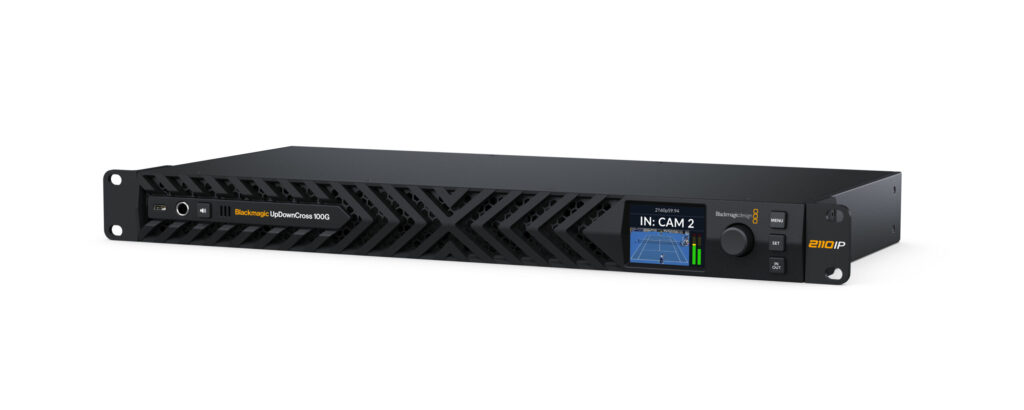

The Blackmagic UpDownCross 100G is a powerful 8-channel standards converter with native SMPTE-2110 connections via 100G Ethernet. It converts up to 8 separate channels of SD, HD and Ultra HD video to any other standard simultaneously. The professional 1RU design features front-to-back cooling that’s very quiet! It also includes redundant 100G Ethernet for full SMPTE-2022-7 compliance, dual redundant AC power supplies and a separate NMOS control port for connecting to control networks!

Ominaisuudet

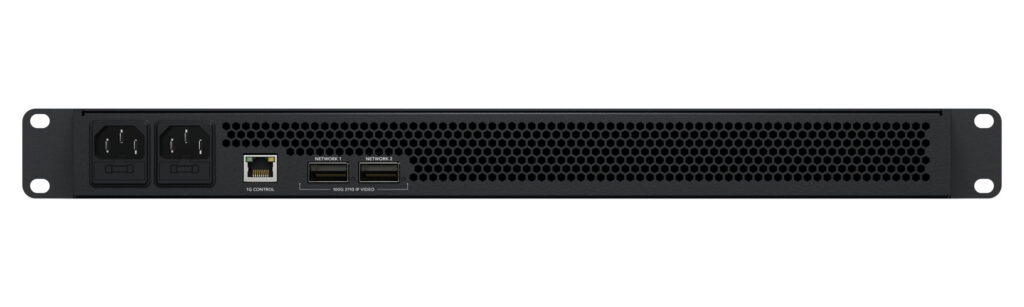

• 100G 2110 IP Networks: 2 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
• Senders and Receivers: 8 x Ultra HD or HD.
• 1G Control Network: 1 x 1G RJ45 for NMOS control, configuration and firmware updates.
• SMPTE ST 2110 IP Audio Inputs: 16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
• SMPTE ST 2110 IP Audio Outputs: 16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
• Analog Audio Outputs: 1 x 6.35 mm headphone jack.
• Computer Interface: 1 x USB-C for configuration and firmware updates.
• Power: 2 x IEC C14 power inputs.

Complete list here.

Paketissa

• Blackmagic UpDownCross 100G
• Welcome wallet with QR code for software download
